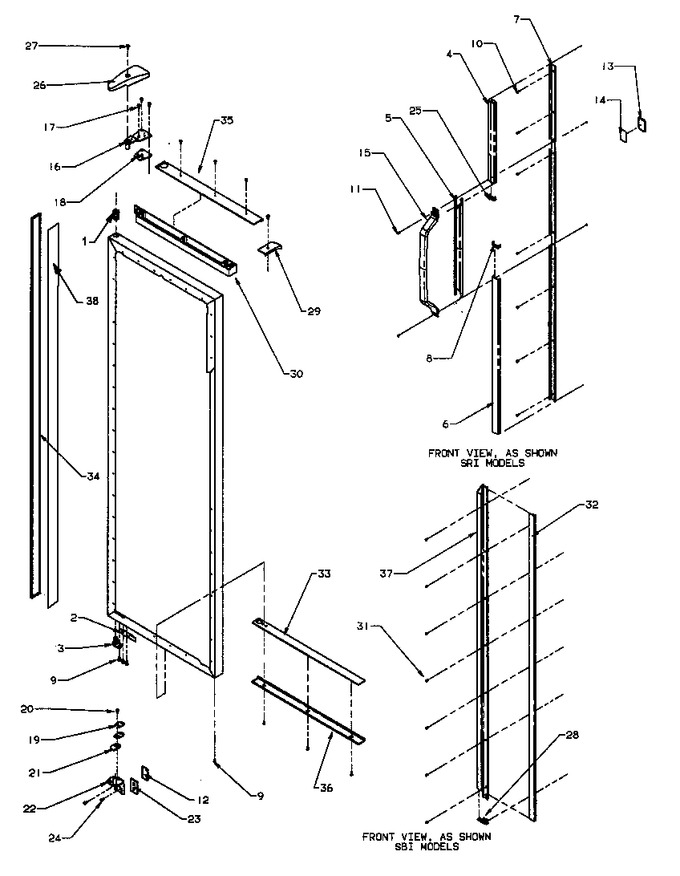

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10393802 | Bushing, Door (wht) |
|
- | |||||
| 2 | C8972406 | Stop, L Door |
|
- | |||||
| 3 | R0181181 | Kit,dr Closure (Replaces: D7751404) |
|
Immediately | $ 7.55 | ||||
| 4 | 10810310 | Trim-l Top Ref Dr |
|
- | |||||
| 5 | 10810402 | Trim, L Ctr Door |
|
- | |||||
| 6 | 10810510 | Trim, Bot Ref Dr L |
|
- | |||||
| 7 | 10852214 | Retainer-ref Trim |
|
- | |||||
| 8 | 10953117 | Insert, Door Trim(``a``) |
|
- | |||||
| 9 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 10 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 8.43 | ||||
| 11 | R9800670 | Screw, Mounting (Replaces: M0223230) |
|
$ 10.58 | |||||
| 12 | 10860201 | Kit, Bot.hinge Shim |
|
- | |||||
| 13 | 10992002 | Base, Nameplate |
|
- | |||||
| 14 | 10992102 | Insert- L Nameplate |
|
- | |||||
| 15 | 10809002 | Kit, Sxs Hndl (l) |
|
- | |||||
| 16 | 10495803 | Hinge, Top (e-ct) |
|
- | |||||
| 17 | R9800670 | Kit, Screw (Replaces: M0226331) |
|
$ 10.58 | |||||
| 18 | B8389001 | Shim, Top Hinge |
|
- | |||||
| 19 | B8387703 | Shim, Door Closure |
|
- | |||||
| 19 | WP67005716 | Shim, Dr Closure (blk) (Replaces: B8387704) |
|
$ 7.83 | |||||
| 20 | W11227370 | Screw, Lock Brake Mounting (Replaces: M0220418) |
|
Immediately | $ 14.91 | ||||
| 21 | R0181181 | Kit,dr Closure (Replaces: D7748302) |
|
Immediately | $ 7.55 | ||||
| 22 | 10496105 | Kit,hinge Rh Btm(b) |
|
- | |||||
| 23 | 10399502 | Kit,btm Hinge Shim |
|
- | |||||
| 23 | 10399501 | Kit,btm Hinge Shim |
|
- | |||||
| 24 | WP67006715 | Screw (Replaces: M0233847) |
|
$ 7.55 | |||||
| 25 | 10953118 | Insert, Trim (``b``) |
|
- | |||||
| 26 | 10849402 | Cover-l Hinge |
|
- | |||||
| 27 | WP8281196 | Screw, Mach (Replaces: M0202336) |
|
Immediately | $ 7.55 | ||||
| 38 | R0195042 | Double Backed Tape 6ft Roll |
|
- |
