Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10980901 Harness, Outer Liner Appelez-nous -
2 12011903 Basket, 11`` Freezer Appelez-nous -
3 12015001 Support-l Shelf Appelez-nous -
4 12012502 Shelf, Stat. Freezer Appelez-nous -
5 10941101 Support, R Shelf Appelez-nous -
6 10493301 Cover, Frz Light Appelez-nous -
7 10493201 Cover, Ref. Light Appelez-nous -
8 M0581001 Grommet, Screw Appelez-nous -
9 C8973404 Socket-light Appelez-nous -
10 D7760102 Housing Frz Light Appelez-nous -
11 10014715 Shield, Light Appelez-nous -
12 W11384469 Switch   (Replaces: C3680304) In-Stock Immediately $ 39.09

13 12012803 Rail, L. Dbl Shelf Appelez-nous -
14 M0270508 Washer Appelez-nous -
15 40A15 Bulb, Light (40 Watt)   (Replaces: A0282803) In-Stock Immediately $ 1.98

16 67006425 Screw, Sm   (Replaces: M0209616) In-Stock Immediately $ 7.30

17 B5733302 Clip, Ground Appelez-nous -
18 WP90767 Screw, Sm   (Replaces: M0211016) In-Stock Immediately $ 8.25

19 12013002 Rail, L. Dbl Shelf Appelez-nous -
20 10991802 Rail- R Double Appelez-nous -
21 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

22 M0580007 Grommet, Screw Appelez-nous -
23 10796001 Socket, Dual Lamp Appelez-nous -
24 10014716 Shield, Light Appelez-nous -
25 D7297603 Cover, Light Sw Appelez-nous -
26 D7716407 Housing-ref Light Appelez-nous -
27 M0219546 Screw Appelez-nous -
28 10991403 Rail-r Shelf Appelez-nous -
29 12013901 Rack, Freezer Appelez-nous -
30 12012103 Shelf, Sld. Freezer Appelez-nous -
31 12011703 Basket, 3`` Freezer Appelez-nous -
32 12011803 Basket, 7`` Freezer Appelez-nous -
33 D7806201 Pan, Ice Appelez-nous -
34 A1055101 Spring, Antikink Appelez-nous -
35 D7826301 Harness, Mod. Im Appelez-nous -
36 NC2098LF Coupling   (Replaces: 10244903) Special Order $ 24.74

37 WPB5705307 Tube, Plastic , 68``   (Replaces: B5705321) Special Order $ 13.05

38 B8374701 Clip, Water Valve Appelez-nous -
39 B8391802 Bracket, I/m Appelez-nous -
40 4318047 Valve-water K   (Replaces: D7712603) In-Stock Immediately $ 74.09

41 D7820401 Cover Im Appelez-nous -
42 D7824706Q Ice Maker   (Replaces: D7824702) In-Stock Immediately $ 167.35

43 Y10901401 Arm, I.m. Shut-off Appelez-nous -
44 WPM0114003 Clip, Speed   (Replaces: M0114003) Special Order $ 11.60

45 10277304 Assy, Fill Tube Appelez-nous -
46 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

47 681390 Screw   (Replaces: M0251015) Special Order $ 13.71

48 WP627018 Nut, Sleeve   (Replaces: M0753001) Special Order $ 11.51

49 B5720301 Clip Appelez-nous -
NI WPA3223101 Insert, Plastic Tube   (Replaces: A3223101) In-Stock Immediately $ 8.21


    View Diagram in Separate Window     Print Icon   Print Part List

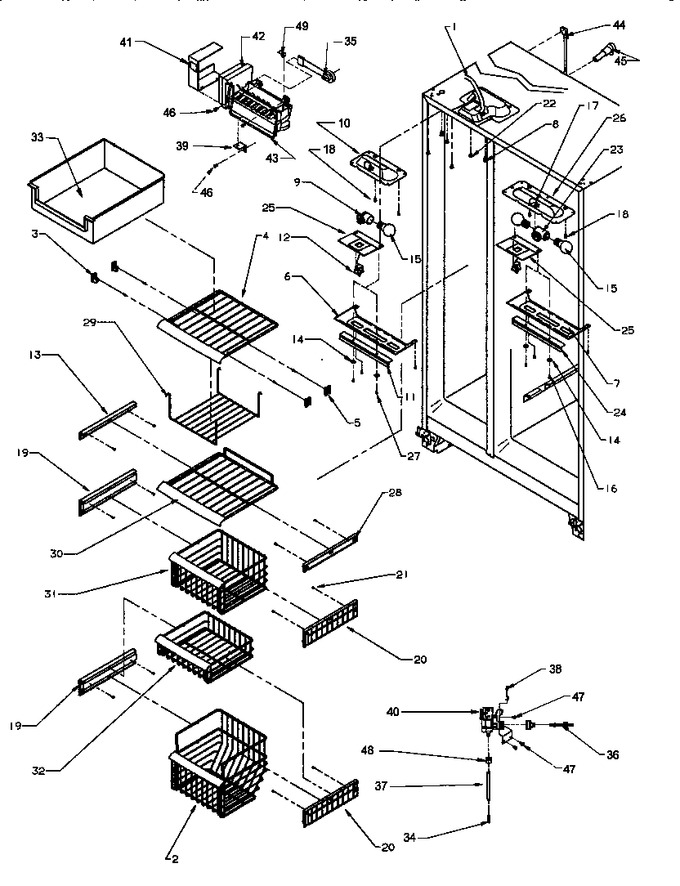

Diagram for SRI25S2L (BOM: P1194001W L)
