Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10623003 Clip, Evaporator Appelez-nous -
2 B8386602 Gasket Appelez-nous -
3 C8976102 Gasket, Air Block Appelez-nous -
4 10426801 Clip, Air Tunnel Appelez-nous -
5 10655902 Evap Cover- E Ct Appelez-nous -
6 D7821166 Inner Fz Back-pnt Appelez-nous -
7 10164808 Grille, Control Appelez-nous -
8 D7838302 Cover, Supply Air Appelez-nous -
9 10527401 Clip, Evap Appelez-nous -
10 10164702 Control-air Appelez-nous -
11 WP489399 Screw   (Replaces: M0232903) Special Order $ 7.30

12 WPW10339879 Tie   (Replaces: M0321202) Special Order $ 8.30

13 M0322202 Tie Wire Appelez-nous -
14 67006425 Screw, Sm   (Replaces: M0209616) In-Stock Immediately $ 7.30

15 C8976201 Clamp Appelez-nous -
16 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

17 M0580002 Grommet A Appelez-nous -
18 10098801 Rivet Appelez-nous -
19 B8386607 Gasket (1=1ft.) Appelez-nous -
20 10893802 Shield, Evap Appelez-nous -
21 D7850202 Drip Tray Pnt. Appelez-nous -
22 WP90767 Screw, Sm   (Replaces: M0224416) In-Stock Immediately $ 8.25

23 A3189335 Gasket Foam Appelez-nous -
24 10629601 Block, Air Coil (left) Appelez-nous -
25 10629001 Block, Air Coil (right) Appelez-nous -
26 R0161087 Kit, Thermostat   (Replaces: 10544003) Special Order $ 128.76

27 W11673433 Clip, Evap Heater   (Replaces: 10428101) Special Order $ 148.18

28 WP12049801 Heater, Evap   (Replaces: 10428405) Special Order $ 149.50

29 R0170057 Assy,low Side Appelez-nous -
30 WP2264462 Grommet   (Replaces: A1017202) In-Stock Immediately $ 46.17

31 A1047901 Shim Appelez-nous -
32 R0000199 Fan-evap/5.250   (Replaces: 10890101) Special Order $ 166.01

33 10656101 Brkt Mtr Appelez-nous -
34 R0151004 Assy, Evap Fn Mtr Special Order $ 133.35

35 10656001 Brk`t-mtr Mt/lw Appelez-nous -
36 10890202 Evap Fan Shroud Appelez-nous -
37 B8386608 Gasket Appelez-nous -
38 A3127412 Ext. Fill Tube Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

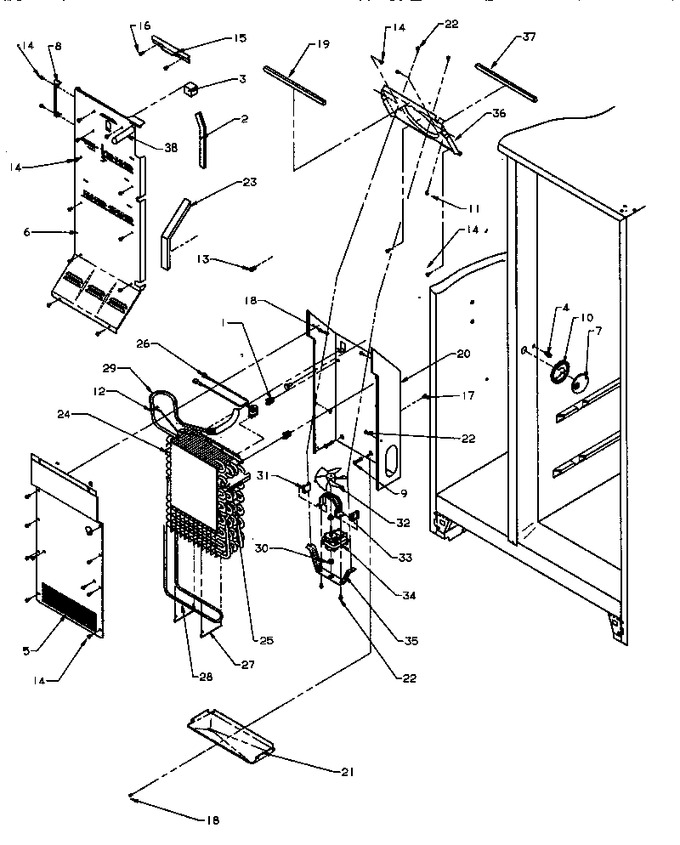

Diagram for SRI25S2L (BOM: P1194001W L)
