Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10470510 Mc Back E- Ct Appelez-nous -
2 10906505 Insul-mc Cover Appelez-nous -
3 10906504 Insul-mc Cover Appelez-nous -
4 10544108 Assy,cond/pan-e Ct Appelez-nous -
5 10602404 Kit,shroud/brkt Sound Appelez-nous -
6 10461504 Cont, Adap. Defrost Appelez-nous -
7 10518701 Blade, Fan Appelez-nous -
8 WPW10169124 Grommet, Compressor   (Replaces: 10835901) Special Order $ 7.55

9 10949201 Harness, Mc Appelez-nous -
10 M0221523 Screw, Shldr Appelez-nous -
11 10377015 Overload Appelez-nous -
12 10266402 Shield, Capacitor Appelez-nous -
13 WP10097202 Ptc Relay   (Replaces: 10097202) Special Order $ 124.93

14 WP65889-4 Capacitor   (Replaces: C8931604) In-Stock Immediately $ 61.14

15 10757301 Cover, Terminal Appelez-nous -
16 10496501 Kit,shroud/brkt Sound Appelez-nous -
17 10495901 Box, H. V. Appelez-nous -
18 833697 Motor, Fan   (Replaces: 10884501) In-Stock Immediately $ 88.15

19 W10160407 Kit, Compressor (1390)   (Replaces: R0155105) Special Order $ 629.92

20 M0253916 Screw Appelez-nous -
21 WP90767 Screw   (Replaces: M0216716) In-Stock Immediately $ 8.25

22 DC61-40081A Tie, Wire   (Replaces: M0585401) Special Order $ 0.94

24 10495701 Bracket, Drain Pan Mtg. Appelez-nous -
25 10507901 Pan, Drain Appelez-nous -
26 10497801 Cover H.v. Box Appelez-nous -
27 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 8.43

28 M0216517 Screw Appelez-nous -
29 M0118703 Clip, Guide Appelez-nous -
30 M0585601 Tab, Wire Tie Appelez-nous -
31 WPW10339879 Tie   (Replaces: M0321202) Special Order $ 8.30

32 M0213529 Screw Appelez-nous -
33 A4539601 Pop Rivet Appelez-nous -
34 M0585403 Tie Wire Appelez-nous -
35 M0223803 Screw Appelez-nous -
36 12992301 Screw, Tf   (Replaces: M0231604) Special Order $ 7.32


    View Diagram in Separate Window     Print Icon   Print Part List

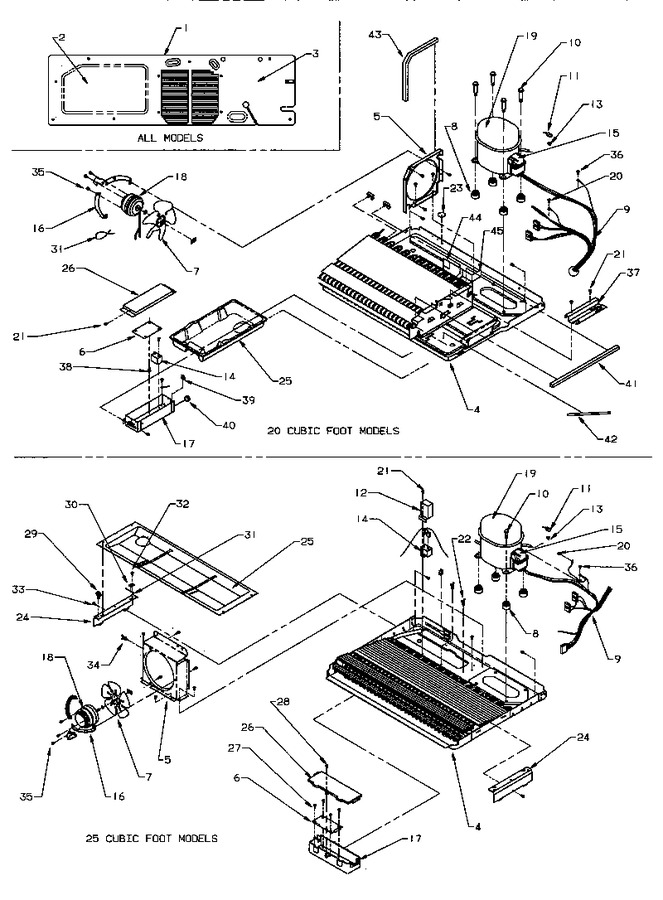

Diagram for SRI25S2L (BOM: P1194001W L)
