01 - Cabinet Parts

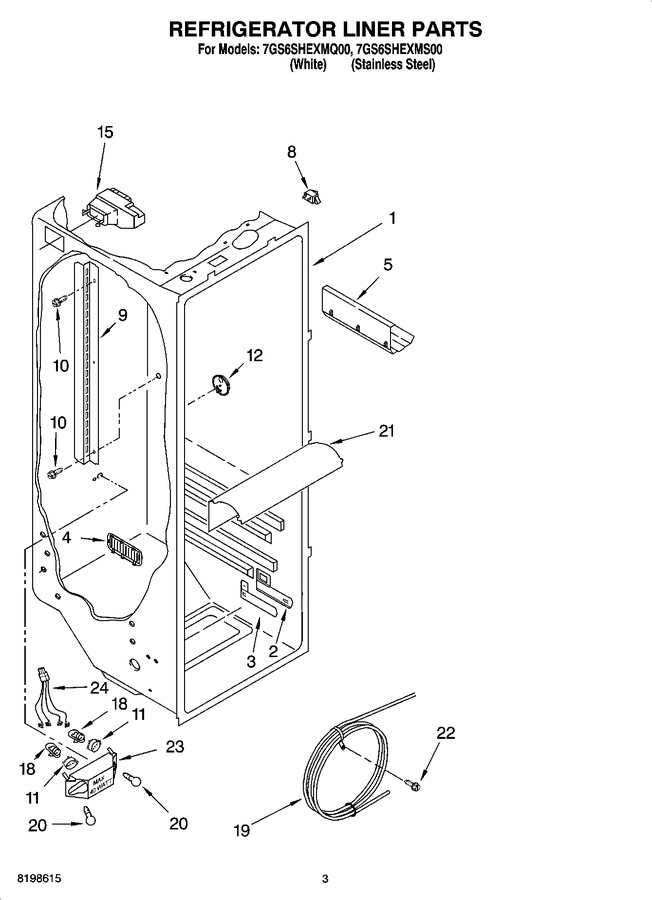

02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Parts Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	2194744		Escutcheon, Meat Pan Control				$ 91.28
3	2182757		Slide Meat Pan Control				$ 75.15
4	2182147		Louver		Appelez-nous	-
5	W10777924		Rack, Wine & Egg   (Replaces: 2179404)				$ 23.60
8	W11384469		Switch, Rocker Arm   (Replaces: 1118894)			Immediately	$ 37.23
9	2206273		Shelf Ladder		Appelez-nous	-
10	WP488729		Screw   (Replaces: 487539)			Immediately	$ 7.79
11	WP2175210		Shroud, Light   (Replaces: 2169193)				$ 82.61
12	2255427		Door Control Asm		Appelez-nous	-
15	WPW10151374		Air Diffuser Assembly   (Replaces: 2209753)			Immediately	$ 99.78
18	4387478		Socket   (Replaces: 2162085)			Immediately	$ 110.16
19	WP2256126		Reservoir   (Replaces: 2217199)				$ 168.85
20	W11679940		Light Bulb   (Replaces: 2255743)			Immediately	$ 11.30
21	2209769		Light Lens		Appelez-nous	-
22	488280		Screw		Appelez-nous	-
23	2256035		Bracket, Dual Crisper				$ 62.54
24	2311637		Wire Harness, Dual Crisper   (Replaces: 2256037)				$ 140.23
