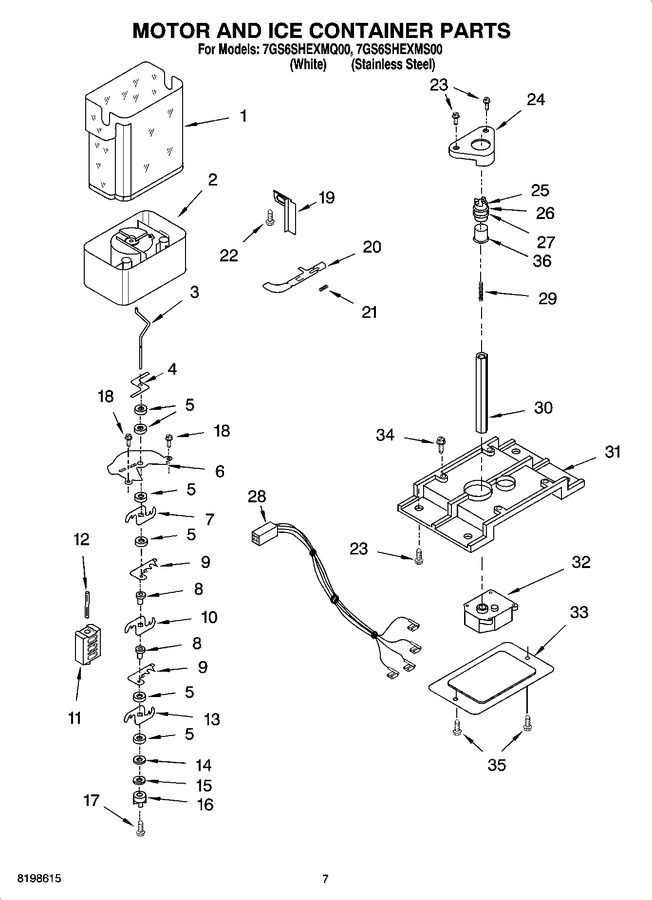

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2198573 | Ice Bin (Replaces: 2198573) |
|
Immediately | $ 254.08 | ||||
| 2 | 2255574 | Crusher Bin |
|
- | |||||
| 3 | WP2198574 | Auger (Replaces: 2211590) |
|
$ 155.10 | |||||
| 4 | 2198603 | Blade, Stirring |
|
- | |||||
| 5 | WP1119007 | Spacer, Flat (6) (Replaces: 1119007) |
|
$ 14.07 | |||||
| 6 | 2255460 | Cover, Crusher |
|
$ 22.88 | |||||
| 7 | W10278733 | Blade, Rotary (Replaces: 1119013) |
|
$ 86.67 | |||||
| 8 | WP1119005 | Spacer, Step (2) (Replaces: 1119005) |
|
$ 11.18 | |||||
| 9 | 2198601 | Blade, Fixed |
|
- | |||||
| 10 | W10278732 | Blade, Rotary (Replaces: 1119012) |
|
$ 86.67 | |||||
| 11 | 2198602 | Block, Blade |
|
- | |||||
| 12 | 489229 | Roll Pin |
|
$ 46.16 | |||||
| 13 | W10278731 | Blade, Rotary (Replaces: 1119006) |
|
$ 86.54 | |||||
| 14 | 489235 | Washer, Plain |
|
$ 8.05 | |||||
| 15 | WP2198661 | Washer, Coupling (Replaces: 2198661) |
|
$ 10.90 | |||||
| 16 | WP2220457 | Coupling (Replaces: 2220457) |
|
Immediately | $ 34.21 | ||||
| 17 | WP8281164 | Screw (Replaces: 8281164) |
|
$ 10.79 | |||||
| 18 | WP3400065 | Screw (Replaces: 3400065) |
|
Immediately | $ 7.74 | ||||
| 19 | WP2315403 | Button, Bin (Replaces: 2255575) |
|
$ 32.77 | |||||
| 20 | 2212371 | Latch, Bin |
|
- | |||||
| 21 | WP2198608 | Spring, Latch (Replaces: 2198608) |
|
$ 7.19 | |||||
| 22 | 2198671 | Screw (2) |
|
$ 10.40 | |||||
| 23 | WP8281163 | Screw (Replaces: 8281163) |
|
Immediately | $ 10.19 | ||||
| 24 | 2212369 | Holder |
|
$ 22.63 | |||||
| 25 | WP2220458 | Coupling, Bottom (Replaces: 2220458) |
|
Immediately | $ 39.09 | ||||
| 26 | WP2198628 | Seal (Replaces: 2198628) |
|
Immediately | $ 11.97 | ||||
| 27 | WP2212370 | Washer (Replaces: 2212370) |
|
$ 23.77 | |||||
| 28 | W10683539 | Wire Harness, Idi Motor (Replaces: 2187725) |
|
$ 36.53 | |||||
| 29 | W10852956 | Spring (Replaces: 2198607) |
|
Immediately | $ 20.38 | ||||
| 30 | WP2188917 | Drive Shaft (Replaces: 999536) |
|
$ 100.18 | |||||
| 31 | 2198655 | Bracket, Motor |
|
- | |||||
| 32 | WP2252129 | Dispenser, Motor (Replaces: 2252129) |
|
$ 333.98 | |||||
| 33 | 2198626 | Cover |
|
- | |||||
| 34 | 8281162 | Screw |
|
- | |||||
| 35 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 36 | WP2212365 | Sleeve, Coupling (Replaces: 2212365) |
|
$ 30.01 |
