SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts

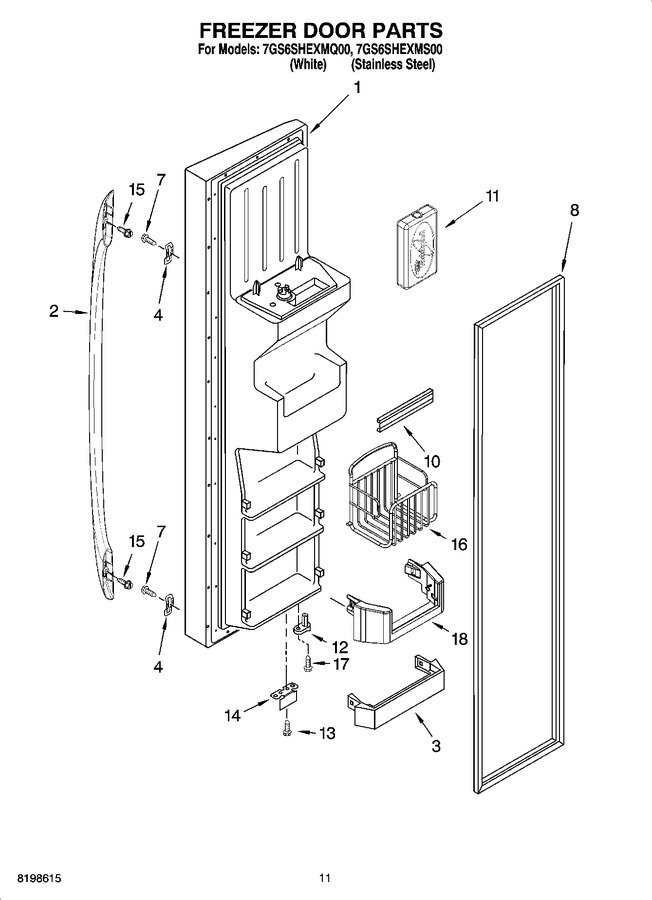

07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Parts Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2255934W		Freezer Door (includes 8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	2255934SB		Freezer Door (includes 8 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
2	2255517B		Handle (black)		Appelez-nous	-
2	2255517W		Handle (white)		Appelez-nous	-
3	WP2171157		Trivet (4)   (Replaces: 2171157)				$ 60.67
4	WP2255411		Clip   (Replaces: 2255411)				$ 34.81
7	WP489491		Screw (4)   (Replaces: 489491)				$ 6.95
8	2159074		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221303)				$ 310.19
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 316.66
10	WPW10307490		Trim, Door Shelf   (Replaces: 2219982)			Immediately	$ 23.11
11	2255459		Bottle, Ice Pack		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 10.87
14	2200082B		Bracket, Door Stop (black)				$ 42.44
14	2200082		Bracket, Door Stop (chrome)				$ 5.83
15	8533920		Screw				$ 5.27
16	2223333		Basket, Tilt-out (2)		Appelez-nous	-
17	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
18	2223334		Trivet, Tilt-out (2)				$ 25.46

    View Diagram in Separate Window       Print Part List
