SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts

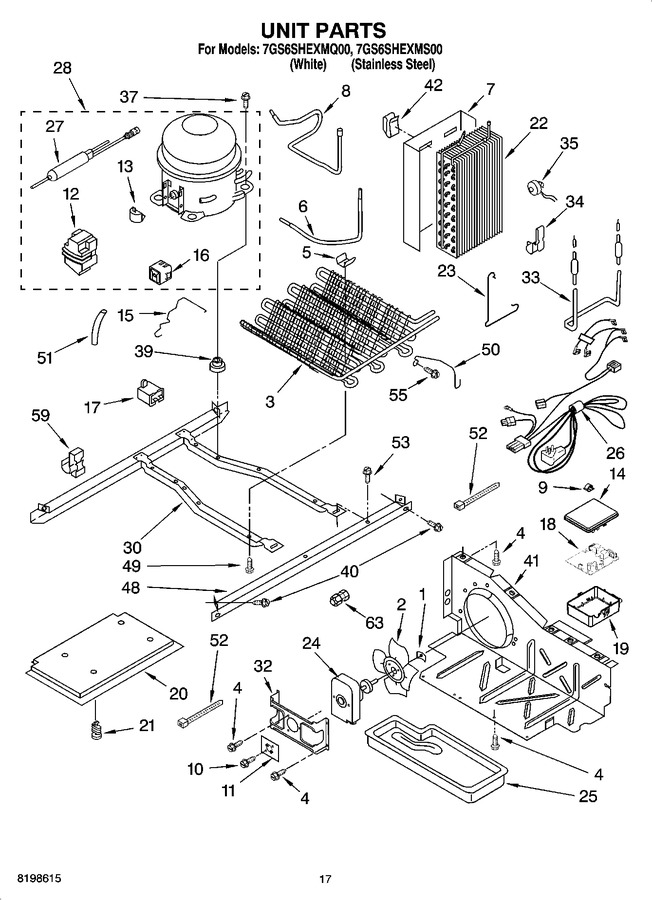

11 - Unit Parts


12 - Icemaker Parts, Parts Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 7.82
2	2190685		Fan, Blade				$ 52.00
3	2204484		Condenser Assembly		Appelez-nous	-
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
5	W10683556		Clip, Condenser   (Replaces: 2216914)				$ 18.46
6	2255798		Tube, Condenser To Heat Loop		Appelez-nous	-
7	2256150		Heat Shield And Drain Pan		Appelez-nous	-
8	2205765		Tube Suction				$ 36.04
9	WP1115374		Clip, Wiring   (Replaces: 1115374)				$ 7.75
10	8281160		Screw		Appelez-nous	-
11	2216997		Bracket, Insert		Appelez-nous	-
12	WP2162358		Cover (service Compressor Only)   (Replaces: 4387731)				$ 90.75
13	WP4387835		Overload (service Compressor Only)   (Replaces: 4387835)				$ 168.66
14	2255624		Cover		Appelez-nous	-
15	2255199		Clip, Retaining		Appelez-nous	-
16	WP2319792		Start-device, Combination (start Relay And Overload) For Production Compressor Only   (Replaces: 2255198)				$ 170.65
17	WP4387764		Capacitor (service)   (Replaces: 4387764)				$ 177.04
17	WPW10662129		Capacitor ((production)   (Replaces: 999532)			Immediately	$ 58.86
18	2255239		Elec. Control				$ 364.59
19	2255623		Control Box				$ 51.40
20	2206281		Unit Cover, Bottom		Appelez-nous	-
21	489396		Clip				$ 10.72
22	WP2188823		Evaporator   (Replaces: 2209611)			Immediately	$ 363.32
23	2161324		Clip		Appelez-nous	-
24	W10124096		Motor, Fan   (Replaces: 2206005)			Immediately	$ 112.20
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
26	2187739		Harness, Unit		Appelez-nous	-
27	W10843121		Drier   (Replaces: 2199167)			Immediately	$ 52.57
28	W10309994		Compressor (includes Items 12, 13, 17, & 27) (also Order 876765 Tube Kit)   (Replaces: 2255197)			Immediately	$ 612.90
30	2304904		Unit Mounting Frame   (Replaces: 2157397)		Appelez-nous	-
32	WP2181929		Bracket, Fan Motor   (Replaces: 2181929)				$ 12.31
33	WP2323198		Heater, Defrost   (Replaces: 2188175)			Immediately	$ 90.70
34	2161330		Clip, Heater		Appelez-nous	-
35	WPW10225581		Bi-metal, Defrost   (Replaces: 2196155)			Immediately	$ 50.77
37	876811		Screw   (Replaces: 489373)				$ 7.42
39	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 6.95
39	876811		Grommet (4) (production)   (Replaces: 1100826)				$ 7.42
40	489340		Screw		Appelez-nous	-
41	W10896764		Air Baffle   (Replaces: 2196202)				$ 96.38
42	2155547		Clip, Heat		Appelez-nous	-
48	2305374		Unit Mounting Rail   (Replaces: 1127911)				$ 80.64
49	W11544659		Screw   (Replaces: 8281232)				$ 13.67
50	2186495		Guard, Fan		Appelez-nous	-
51	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 20.30
52	WPW10339879		Wire Tie   (Replaces: 2172840)				$ 7.90
53	WP489427		Screw   (Replaces: 489427)				$ 7.47
55	WP489478		Screw   (Replaces: 489478)				$ 7.75
59	2261316		Clip, Wire & Tube		Appelez-nous	-
63	N/A		Refrigerant Charge 5.0 Oz. (r-134a)		Appelez-nous	-
63	978029		Valve Access (5/8``)				$ 93.85
63	978030		Valve, Access (3/4``)				$ 130.71
63	876764		Valve, Access(3/16``)			Immediately	$ 91.35
63	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
63	WP4373559		Union   (Replaces: 2209709)				$ 77.35
63	978026		Valve, Access (5/16``)			Immediately	$ 128.09
63	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
63	978028		Valve, Access (1/2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
