SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts

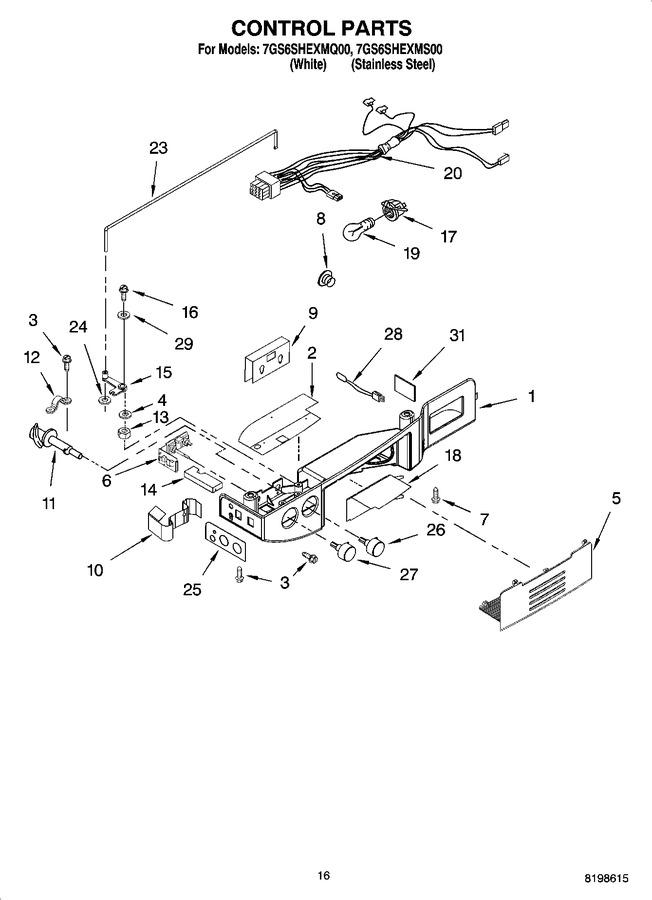

10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Parts Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2255222		Control Box				$ 72.46
2	2255991		Shield		Appelez-nous	-
3	WP3196557		Screw (4)   (Replaces: 3196537)			Immediately	$ 7.95
4	3400972		Washer		Appelez-nous	-
5	2255225		Lens, Light		Appelez-nous	-
6	2255414		Electronic Control		Appelez-nous	-
7	WPW10141645		Screw (2)   (Replaces: 489084)				$ 7.67
8	940014		Hole Plug				$ 18.33
9	2261232		Shield, Electrical		Appelez-nous	-
10	2261231		Shield, Electrical (internal)		Appelez-nous	-
11	2255226		Cam Assembly		Appelez-nous	-
12	2255413		Bearing Body		Appelez-nous	-
13	3400971		Nut, Hex		Appelez-nous	-
14	2261329		Foam, Shield		Appelez-nous	-
15	2255227		Pivot Arm		Appelez-nous	-
16	627068		Screw				$ 12.12
17	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 110.16
18	2255666		Shield, Heat		Appelez-nous	-
19	W11679940		Light Bulb   (Replaces: 2255743)			Immediately	$ 11.30
20	2255235		Control Box Harness		Appelez-nous	-
23	2255228		Connecting Rod		Appelez-nous	-
24	489285		Fastner, Push-on		Appelez-nous	-
25	2255611		Escutcheon, Control Box		Appelez-nous	-
26	2255232		Knob, Rc		Appelez-nous	-
27	2255992		Knob, Fc		Appelez-nous	-
28	WP2188819		Thermistor   (Replaces: 2216113)			Immediately	$ 46.01
29	489203		Spring Washer		Appelez-nous	-
31	2261265		Air Seal, Thermistor		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
