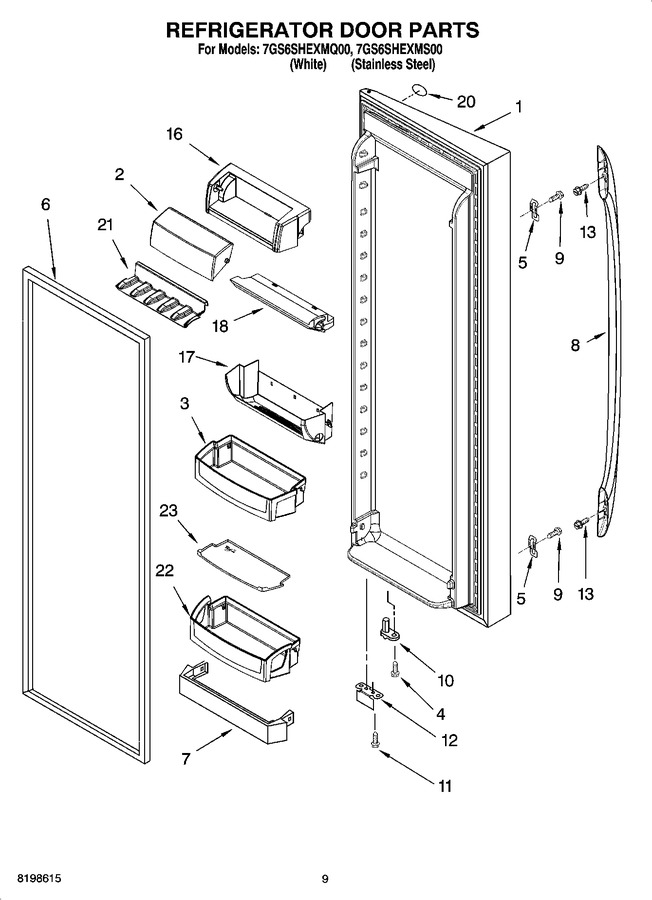

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2255535W		Refrigerator Door (includes Item 6) (white)		Appelez-nous	-
1	2255535SB		Refrigerator Door (includes Item 6) (stainless Steel)		Appelez-nous	-
2	2255421		Dairy Door				$ 34.76
3	2223239		Door Bin (2)		Appelez-nous	-
4	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
5	WP2255411		Clip   (Replaces: 2255411)				$ 34.81
6	2159083		Door Gasket, Magnetic (black)   (Replaces: 2221313)				$ 251.49
6	2159075		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221302)			Immediately	$ 317.14
7	WP2318736		Trivet   (Replaces: 2223727)				$ 73.28
8	2255517B		Handle (black)		Appelez-nous	-
8	2255517W		Handle (white)		Appelez-nous	-
9	WP489491		Screw (4)   (Replaces: 489491)				$ 6.95
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
11	WP489483		Screw   (Replaces: 489420)				$ 10.87
12	2200082		Bracket, Door Stop (chrome)				$ 5.83
12	2200082B		Bracket, Door Stop (black)				$ 42.44
13	8533920		Screw				$ 5.27
16	2255420		Door Compartment				$ 49.86
17	2255422		Frame, Can Rack				$ 70.07
18	2255424		Air Diffuser Asm		Appelez-nous	-
20	2220214		Nameplate				$ 32.43
21	2255423		Floor, Can Rack		Appelez-nous	-
22	2223463		Door Bin		Appelez-nous	-
23	2223464		Mat, Bin		Appelez-nous	-
