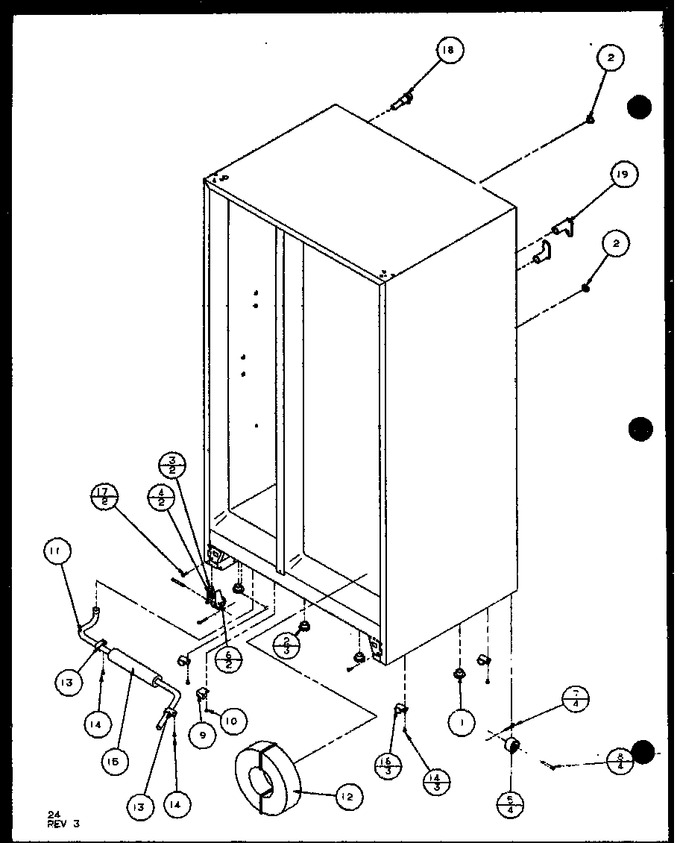

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | A3076901 | Plug-button |
|
$ 5.70 | |||||
| 2 | A3080001 | Plug, Button (blk) |
|
- | |||||
| 3 | C8742401 | Assy, Roller Bracket |
|
- | |||||
| 4 | M0286708 | Nut, Speed |
|
$ 47.85 | |||||
| 5 | M0520102 | Roller |
|
- | |||||
| 6 | M1205302 | Rivet |
|
$ 5.85 | |||||
| 7 | M1200004 | Cotter Pin K |
|
- | |||||
| 8 | M1200202 | Pin K |
|
- | |||||
| 9 | C8985801 | Bracket, Retainer |
|
- | |||||
| 10 | 67006425 | Screw-sm No.8-1/2lg (Replaces: M0211017) |
|
Immediately | $ 7.30 | ||||
| 11 | D7748501 | Drain Tube |
|
- | |||||
| 12 | D7787801 | Tank, Coil Water |
|
- | |||||
| 13 | M0102303 | Clamp |
|
- | |||||
| 14 | WP489069 | Screw-sd (Replaces: M0233704) |
|
Immediately | $ 8.40 | ||||
| 15 | A0329806 | Insul Tubing 1=12`` |
|
- | |||||
| 16 | M0102327 | Clamp |
|
- | |||||
| 17 | M0204339 | Screw Bolt K |
|
- | |||||
| 18 | B8318803 | Fill Tube Assy |
|
- | |||||
| 19 | C8971902 | Tunnel, Heat Ex. |
|
- |
