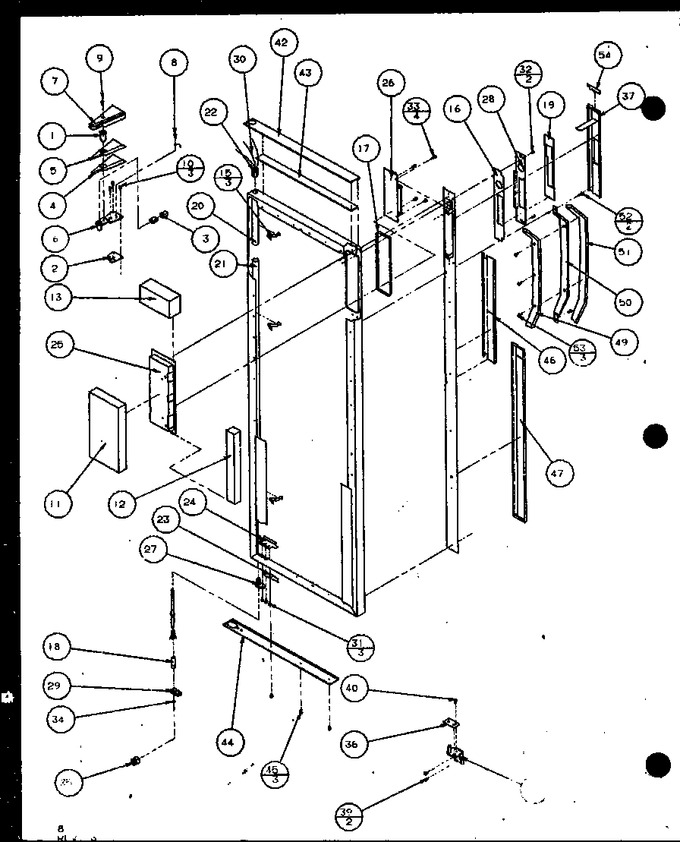

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A3012530		Tubing Plastic		Appelez-nous	-
2	B8389001		Shim, Top Hinge		Appelez-nous	-
3	B8393901		Connector 3 Pin		Appelez-nous	-
4	C8976001		Insulator, Hinge Cover		Appelez-nous	-
5	C8987901		Foil, Hinge Cover		Appelez-nous	-
6	D7757803		Top Hinge Assy		Appelez-nous	-
7	D7789501		Cover, Hinge		Appelez-nous	-
8	W11214483		Screw, Mach   (Replaces: M0202321)				$ 14.72
9	M0202325		Screw		Appelez-nous	-
10	R9800670		Kit, Screw   (Replaces: M0257244)				$ 10.58
11	B5612028		Insulation Batt		Appelez-nous	-
12	B5629046		Insulation		Appelez-nous	-
13	B5629047		Insulation		Appelez-nous	-
15	B8388801		Clip		Appelez-nous	-
16	B8390401		Gasket Trim		Appelez-nous	-
17	B8390501		Gasket Retainer K		Appelez-nous	-
18	B8390701		Assy, Hinge Pin		Appelez-nous	-
19	B8392301		Bracket, Gasket		Appelez-nous	-
20	C8964202		Tube, Protective		Appelez-nous	-
21	C8964203		Tube, Protective		Appelez-nous	-
22	WP67004977		Bushing, Top   (Replaces: C8964401)				$ 8.20
23	C8972402		Stop, Door		Appelez-nous	-
24	D7790801		Nut, Door Stop		Appelez-nous	-
25	D7832901		Cover, Pc Board		Appelez-nous	-
26	D7833001		Pc Board See Svc Ltr F733		Appelez-nous	-
27	D7833201		Closure, Door (white)		Appelez-nous	-
28	D7833501		Bracket Trim		Appelez-nous	-
29	D7838401		Closure, Door (white)		Appelez-nous	-
30	D7868501		Harness, Ref Door		Appelez-nous	-
31	M0219717		Screw		Appelez-nous	-
32	M0230727		Screw		Appelez-nous	-
33	M0217204		Screw		Appelez-nous	-
34	M0273001		Assy, Hinge Pin		Appelez-nous	-
35	M0335408		Connector		Appelez-nous	-
36	B8386701		Kit,btm Hinge Shim		Appelez-nous	-
36	B8386703		Kit,btm Hinge Shim		Appelez-nous	-
36	B8386702		Kit,btm Hinge Shim		Appelez-nous	-
37	D7834208		Keyboard Lv Board Assy Black		Appelez-nous	-
38	D7833101		Bottom Hinge Assembly		Appelez-nous	-
39	M0246258		Screw		Appelez-nous	-
40	M0203931		Screw, Tf		Appelez-nous	-
42	D7872201		Trim Ref. Dr. Top		Appelez-nous	-
43	M0275148		Tape Per Roll K		Appelez-nous	-
44	D7872301		Trim		Appelez-nous	-
45	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 8.43
46	D7853802		Trim Center Refr K		Appelez-nous	-
47	D7792802		Lower Trim Ref Door K		Appelez-nous	-
49	D7863001		Inner Pad K		Appelez-nous	-
50	D7826603		Handle		Appelez-nous	-
51	D7863101		Outer Pad K		Appelez-nous	-
52	WP3400094		Screw   (Replaces: M0253942)				$ 9.26
53	M0215115		Screw		Appelez-nous	-
54	C8972304		Shim		Appelez-nous	-
