SELECT A DIAGRAM

01 - Cabinet Back


02 - Drain And Rollers


03 - Evap And Air Handling


04 - Fz Door


05 - Fz Door


06 - Fz Door


07 - Fz Shelving And Ref Light


08 - Ice And Water Cavity


09 - Ice Bucket And Ice Maker


10 - Machine Compartment


11 - Ref Door


12 - Ref Shelving And Drawers


13 - Ref/fz Controls And Cabinet Part

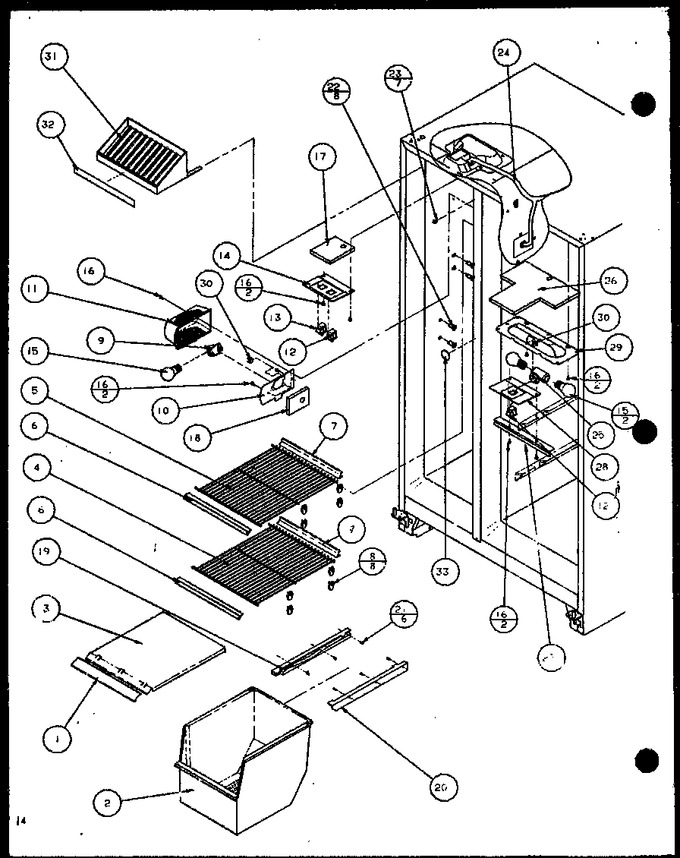

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7616620		Trim, Frz Shelf		Appelez-nous	-
2	D7781402		Basket Freezer Clear		Appelez-nous	-
3	D7781504		Freezer Shelf		Appelez-nous	-
4	D7788304		Shelf Fz Wire		Appelez-nous	-
5	D7788305		Shelf Wire Frz		Appelez-nous	-
6	C8913515		Trim, Rear Frz Shelf		Appelez-nous	-
7	C8913607		Trim, Rear Frz Shelf		Appelez-nous	-
8	C8973801		Support, Frz Shelf				$ 8.35
9	D7714401		Socket-light		Appelez-nous	-
10	D7753501		Plate Lt. Socket		Appelez-nous	-
11	D7786601		Shield, Frz Light		Appelez-nous	-
12	C8983802		Switch, Mc Light		Appelez-nous	-
13	C8983801		Switch, Fan		Appelez-nous	-
14	D7749001		Cover Light		Appelez-nous	-
15	40A15		Bulb, Light (40 Watt)   (Replaces: A0282803)			Immediately	$ 1.98
16	67006425		Screw   (Replaces: M0230917)			Immediately	$ 7.30
17	C8976401		Barrier Frz.		Appelez-nous	-
18	C8974501		Barrier, Frz Side		Appelez-nous	-
19	D7849901		Driver		Appelez-nous	-
20	D7849902		Glide, Freezer Rh		Appelez-nous	-
21	M0213529		Screw		Appelez-nous	-
22	C8973701		Plug, Frz Shelf Support		Appelez-nous	-
23	M0580007		Grommet, Screw		Appelez-nous	-
24	D7868201		Harness, Outer Liner		Appelez-nous	-
25	D7808602		Socket, Dual Lamp		Appelez-nous	-
26	C8778301		Insulation		Appelez-nous	-
27	10014705		Light Shield		Appelez-nous	-
28	D7297602		Cover, Light Sw		Appelez-nous	-
29	D7716403		Housing-ref Light		Appelez-nous	-
30	B5733302		Clip, Ground		Appelez-nous	-
31	D7839701		Rack, Juice V		Appelez-nous	-
32	C8986101		Insert Juice Rack		Appelez-nous	-
33	A3069103		Plug		Appelez-nous	-
