Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 C8991201 Knob, Crisper Control Appelez-nous -
2 D7860602 Slide Crisper Cont. A Appelez-nous -
3 D7616629 Trim Appelez-nous -
4 D7859601 Band Crisper Control Appelez-nous -
5 D7421275 Glass Crisper Top Appelez-nous -
6 D7421271 Glass Crisper Top Appelez-nous -
7 D7782103 Pan, Crisper Appelez-nous -
8 D7782104 Crisper Pan Appelez-nous -
9 D7853205 Frame Crisper Appelez-nous -
9 D7853207 Frame,crisper Appelez-nous -
10 10043102 Ext. Rear Glass Appelez-nous -
11 D7859501 Band M.k. Control Appelez-nous -
12 C8913513 Trim, Front Shelf Appelez-nous -
13 C8913606 Trim, Glass Shelf Rear Appelez-nous -
14 D7421241 Glass Shelf Appelez-nous -
15 D7871009 Frame-cantilever Shelf Appelez-nous -
16 A3263905 Gasket-per Ft Appelez-nous -
17 C8990404 Trim-m.k., Top, Rear Appelez-nous -
18 C8913531 Trim, Front Shelf Appelez-nous -
19 D7862925 Blank Side Rail (silver) Appelez-nous -
19 D7862924 Blank Side Rail Appelez-nous -
20 D7859401 Slide-mk Control Appelez-nous -
21 D7857002 Frame, M.k. Appelez-nous -
22 D7698107 Sleeve M.k. Appelez-nous -
23 D7698318 Meat Pan Appelez-nous -
24 D7421266 Glass Shelf Mk Appelez-nous -
25 D7873601 Grommet, Mk Appelez-nous -
26 D7869001 Xduct M.k. Air Appelez-nous -
27 M0230028 Screw, No.8-32 X 5/16 Pph (blk) Appelez-nous -
28 D7547603 Rack, Bottle Appelez-nous -
29 D7789801 Ladder, Cantilever Appelez-nous -
30 67006425 Screw-sm No.8-1/2lg   (Replaces: M0211017) In-Stock Immediately $ 7.30

31 M0580007 Grommet, Screw Appelez-nous -
32 D7869102 Ext. Air Duct Appelez-nous -
33 10042103 Seal, Crisper Rear Appelez-nous -
33 10042102 Seal, Crisper Front Appelez-nous -
34 C8992301 Bracket Appelez-nous -
NI R0179119 Glass Crisper Top Assy Appelez-nous -
NI R0179118 Glass Crisper Top Assy Appelez-nous -
NI D7871806 Glass Shelf Assy Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

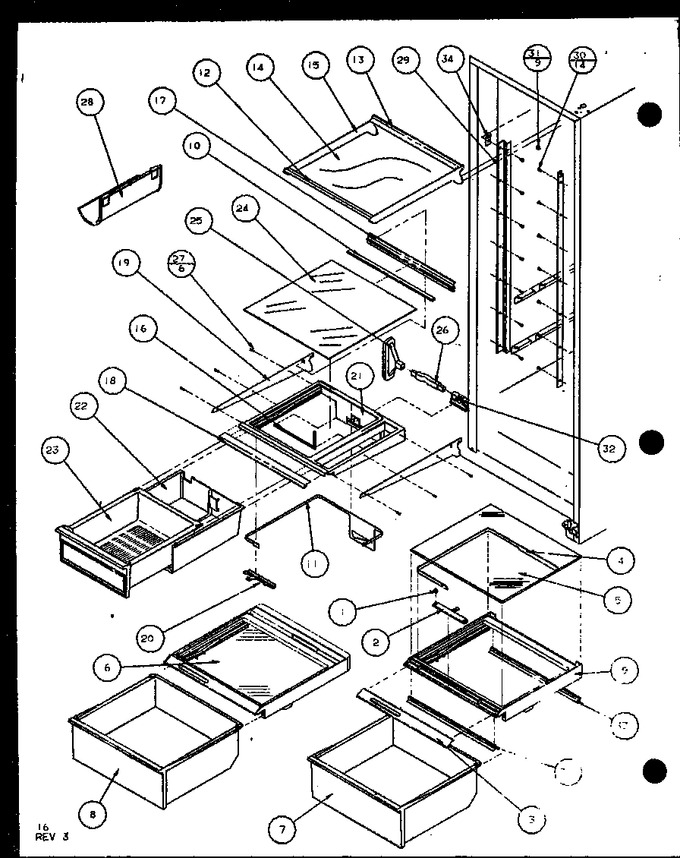

Diagram for SXDE25JP (BOM: P7870102W)
