SELECT A DIAGRAM

01 - Cabinet Back


02 - Drain And Rollers


03 - Evap And Air Handling


04 - Fz Door


05 - Fz Door


06 - Fz Door


07 - Fz Shelving And Ref Light


08 - Ice And Water Cavity


09 - Ice Bucket And Ice Maker


10 - Machine Compartment

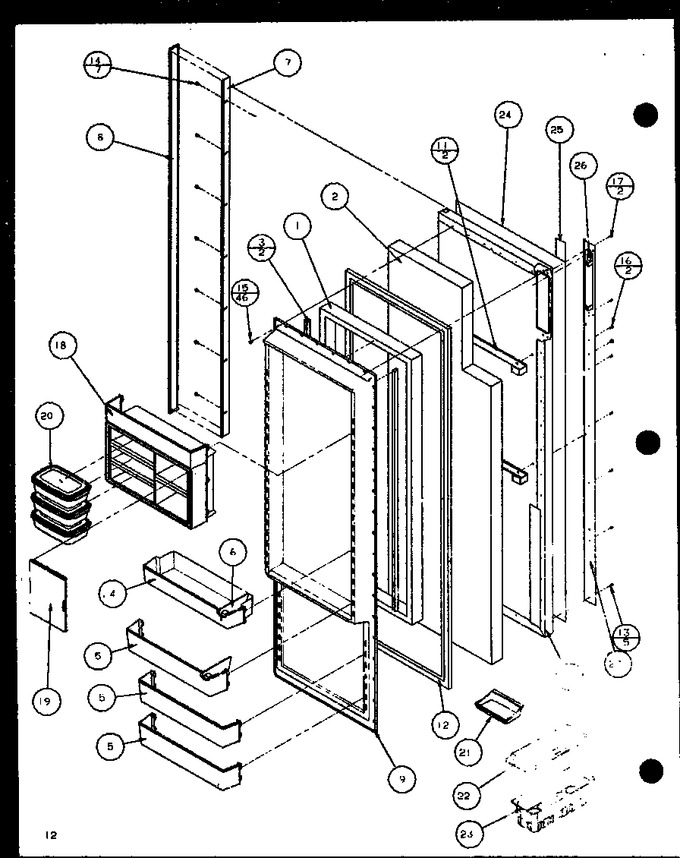

11 - Ref Door


12 - Ref Shelving And Drawers


13 - Ref/fz Controls And Cabinet Part


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B0523562		Insul. By The Ft.		Appelez-nous	-
2	B0566725		Insulation, Batt		Appelez-nous	-
3	C8987104		Seal, Door Dike		Appelez-nous	-
4	D7783302		Bucket Ref Door		Appelez-nous	-
5	67003697		Shelf, Ref Door   (Replaces: D7783402)				$ 82.08
6	D7814601		Snugger, Door Shelf		Appelez-nous	-
7	10015401		Retainer Vert. Trim		Appelez-nous	-
8	D7877601		Trim		Appelez-nous	-
9	D7828702		Inner Door Panel		Appelez-nous	-
10	D7882708		Pan, Ref Door, Almond		Appelez-nous	-
10	D7882706		Pan, Ref Door, White		Appelez-nous	-
10	D7882707		Door, Ref G		Appelez-nous	-
11	D7837402		Support, Handle		Appelez-nous	-
12	D7870905		Gasket, Door (w Ref)		Appelez-nous	-
13	M0213815		Screw		Appelez-nous	-
14	M0223004		Screw		Appelez-nous	-
15	M0219717		Screw		Appelez-nous	-
16	M0233329		Screw,sm		Appelez-nous	-
17	M0237515		Screw		Appelez-nous	-
18	D7781202		Module-dairy		Appelez-nous	-
19	D7781304		Door Dairy		Appelez-nous	-
20	D7806403		Container Sec. Ser.		Appelez-nous	-
21	D3799802		Butter Tray		Appelez-nous	-
22	D7805901		Cover-bucket		Appelez-nous	-
23	D7695604		Egg Bucket		Appelez-nous	-
24	C8823637		Panel Black Glass		Appelez-nous	-
25	C8984304		Thinplate, Door		Appelez-nous	-
26	B5733302		Clip, Ground		Appelez-nous	-
27	D7832402		Trim		Appelez-nous	-
