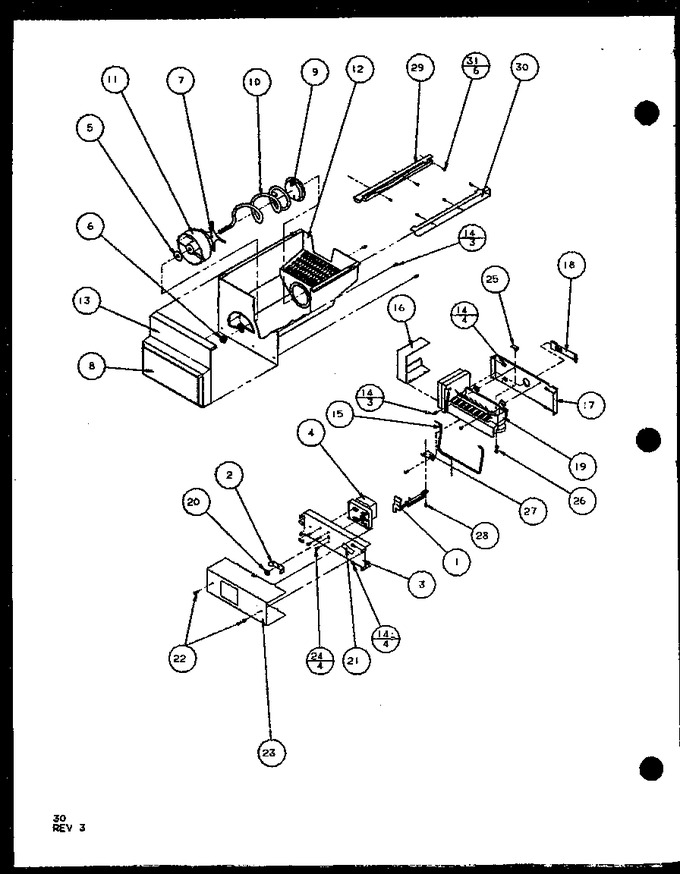

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C8980402 | I.m. Shut Off Assy |
|
- | |||||
| 2 | D7749501 | Helix |
|
- | |||||
| 3 | D7749203 | Support,auger Motor |
|
- | |||||
| 4 | D7749301 | Motor-auger |
|
- | |||||
| 5 | A1061701 | Washer |
|
- | |||||
| 6 | B8385101 | Nut-helix |
|
- | |||||
| 7 | C8964101 | Bar, Breaker |
|
- | |||||
| 8 | C8975304 | Insert, Bucket |
|
- | |||||
| 9 | WPD7749401 | Cap, Helix End (Replaces: D7749401) |
|
$ 29.01 | |||||
| 10 | D7749501 | Helix |
|
- | |||||
| 11 | D7749601 | Wheel Lift |
|
- | |||||
| 12 | D7749702 | Bucket, Ice V |
|
- | |||||
| 13 | D7749802 | Front, Bucket |
|
- | |||||
| 14 | 67006425 | Screw (Replaces: M0230917) |
|
Immediately | $ 7.30 | ||||
| 15 | D7877001 | Arm,ice Maker Shut Off |
|
- | |||||
| 16 | D7820401 | Cover Im |
|
- | |||||
| 17 | D7821003 | Support-im |
|
- | |||||
| 18 | D7824601 | Harness |
|
$ 57.59 | |||||
| 19 | D7824706Q | Ice Maker (Replaces: D7824701) |
|
Immediately | $ 167.35 | ||||
| 20 | M0120501 | Nut |
|
- | |||||
| 21 | A3030305 | Gasket-per Ft |
|
- | |||||
| 22 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 8.38 | ||||
| 23 | D7788809 | Cover,auger Mtr-e Ct |
|
- | |||||
| 24 | M0253916 | Screw |
|
- | |||||
| 25 | B5720301 | Clip |
|
- | |||||
| 26 | WP628379 | Clip, Thermal Fuse (Replaces: B8389801) |
|
$ 11.10 | |||||
| 27 | B8391801 | Bracket, I/m |
|
- | |||||
| 28 | M0211118 | Screw, Sm |
|
- | |||||
| 29 | D7849901 | Driver |
|
- | |||||
| 30 | D7849902 | Glide, Freezer Rh |
|
- | |||||
| 31 | M0213529 | Screw |
|
- |
