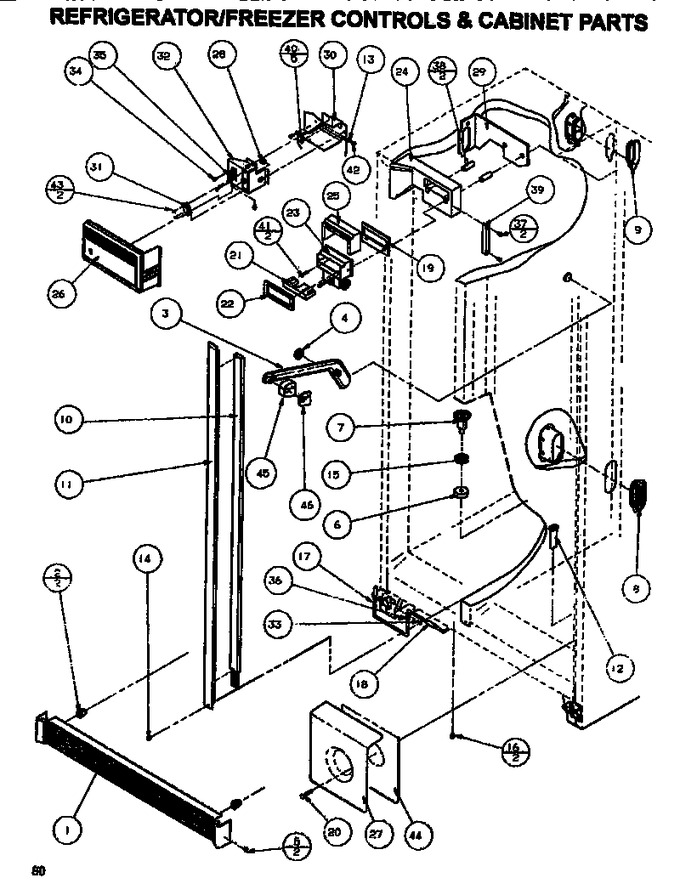

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10470307 | Assy, Toe Grille (almond) |
|
- | |||||
| 1 | 10470306 | Assy, Toe Grille (white) |
|
- | |||||
| 2 | M0117301 | Clip, Grille |
|
- | |||||
| 3 | 10286902 | Ass`y, Air Tunnel |
|
- | |||||
| 4 | 10166701 | Gasket, Tunnel |
|
- | |||||
| 5 | M0217225 | Screw |
|
- | |||||
| 6 | WPB8381501 | Gasket, Drain Tube (Replaces: B8381501) |
|
$ 7.78 | |||||
| 7 | W10815413 | Funnel, Drain (Replaces: D7753901) |
|
Immediately | $ 51.50 | ||||
| 8 | D7785401 | Grille-rtn Air |
|
- | |||||
| 9 | 10178001 | Tunnel Air Supply |
|
- | |||||
| 10 | 10505301 | Tube, Mullion |
|
- | |||||
| 11 | D7788615 | Mullion,vert-white E Ct |
|
- | |||||
| 11 | D7788616 | L Vt Mull-pnt |
|
- | |||||
| 12 | D7793501 | Grommet |
|
- | |||||
| 13 | M0272803 | Lock Washer |
|
- | |||||
| 14 | 12991101 | Screw, Sm (Replaces: M0210816) |
|
$ 13.47 | |||||
| 15 | WPM0500703 | Seal, O Ring (Replaces: M0500703) |
|
$ 11.47 | |||||
| 16 | M0580007 | Grommet, Screw |
|
- | |||||
| 17 | WPB5705307 | Tube, Plastic , 68`` (Replaces: B5705321) |
|
$ 13.05 | |||||
| 18 | WP4373559 | Union K (Replaces: B5706901) |
|
$ 81.22 | |||||
| 19 | B8345401 | Gasket, Damper |
|
- | |||||
| 20 | C6457701 | Clip K |
|
- | |||||
| 21 | C8902601 | Insert, Control |
|
- | |||||
| 22 | 10383201 | Gasket, Damper |
|
- | |||||
| 23 | 10271401 | Damper, Control |
|
- | |||||
| 24 | 10176604 | Duct-waxed Air |
|
- | |||||
| 25 | D7788201 | Insulation |
|
- | |||||
| 26 | D7790338 | Cover, Control |
|
- | |||||
| 27 | D7879302 | Cover, Tank Insul. |
|
- | |||||
| 28 | A4554806 | Snap Bushing |
|
- | |||||
| 29 | 10177901 | Gasket, Air Duct |
|
- | |||||
| 30 | D7822402 | Box, Bottom Control |
|
- | |||||
| 31 | C8983702 | Thermistor-ref |
|
- | |||||
| 32 | D7832803 | Box-top Cont. |
|
- | |||||
| 33 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 34 | M0234003 | Screw |
|
- | |||||
| 35 | 10279201 | Switch |
|
- | |||||
| 36 | M0102301 | Clamp |
|
- | |||||
| 37 | WP489474 | Screw 1`` (Replaces: M0211021) |
|
Immediately | $ 8.55 | ||||
| 38 | A3044208 | Spacer Damper |
|
- | |||||
| 39 | C8977301 | Clamp |
|
- | |||||
| 40 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 8.38 | ||||
| 41 | M0216539 | Screw |
|
- | |||||
| 42 | WP489399 | Screw (Replaces: M0232903) |
|
$ 7.30 | |||||
| 43 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 8.43 | ||||
| 44 | D7793403 | Insulation Cut Tank |
|
- | |||||
| 45 | 10470901 | Void-foam |
|
- | |||||
| 46 | 10471001 | Gasket, Foam Void |
|
- |
