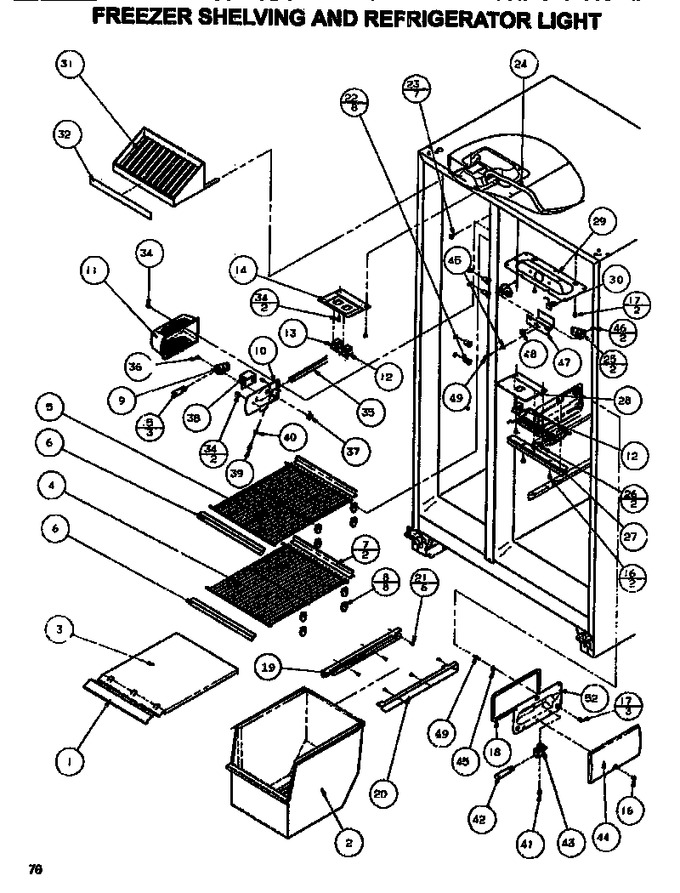

09 - Fz Shelving & Ref Light


10 - Ice & Water Cavity


11 - Ice & Water Cavity Assy


12 - Icemaker


13 - Ref Door


14 - Ref Door (cont.)


15 - Shelving & Drawers (ref)


16 - Tecumseh Compressor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7616690		Trim-fz Shelf		Appelez-nous	-
2	D7820803		Basket, Freezer		Appelez-nous	-
3	D7781504		Freezer Shelf		Appelez-nous	-
4	D7788314		Shelf Fz Wire		Appelez-nous	-
5	D7788315		Shelf, Frz Wire		Appelez-nous	-
6	10049937		Trim, Shelf (front)		Appelez-nous	-
7	C8913609		Trim		Appelez-nous	-
8	C8973801		Support, Frz Shelf				$ 8.35
9	D7845102		Socket, Lamp		Appelez-nous	-
10	D7845204		Plate - Lt Socket		Appelez-nous	-
11	D7786602		Shield, Light		Appelez-nous	-
12	C8983804		Switch, Mc Light		Appelez-nous	-
13	C8983803		Switch-fan		Appelez-nous	-
14	D7749002		Cover Light		Appelez-nous	-
15	M0360402		Light Bulb (230/240 Vac)		Appelez-nous	-
16	WP12990527		Screw   (Replaces: M0219916)			Immediately	$ 8.76
17	67006425		Screw-sm No.8-1/2lg   (Replaces: M0211017)			Immediately	$ 7.30
18	A3189337		Gasket		Appelez-nous	-
19	10619601		Glide, Frz. (left)		Appelez-nous	-
20	10619602		Glide, Frz. (right)		Appelez-nous	-
21	M0213529		Screw		Appelez-nous	-
22	C8973701		Plug, Frz Shelf Support		Appelez-nous	-
23	M0580007		Grommet, Screw		Appelez-nous	-
24	10487501		Harness, Frz Liner		Appelez-nous	-
25	D7845101		Socket, Lamp		Appelez-nous	-
26	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
27	10014708		Shield, Light		Appelez-nous	-
28	D7297603		Cover, Light Sw		Appelez-nous	-
29	D7716406		Housing-ref Light		Appelez-nous	-
30	Y10244001		Harness, Ref Light		Appelez-nous	-
31	D7839701		Rack, Juice V		Appelez-nous	-
32	C8986119		Insert, Juice Rack		Appelez-nous	-
33	10270202		Housing Light		Appelez-nous	-
34	12991101		Screw, Sm   (Replaces: M0210816)				$ 13.47
35	10250002		Cover, Wire		Appelez-nous	-
36	M0217225		Screw		Appelez-nous	-
37	A4554813		Snap Bushing		Appelez-nous	-
38	D7844902		Socket Cover		Appelez-nous	-
39	A4539626		Pop Rivet		Appelez-nous	-
40	M0320905		Terminal Ground A		Appelez-nous	-
41	M0217225		Screw		Appelez-nous	-
42	M0360402		Light Bulb (230/240 Vac)		Appelez-nous	-
43	D7845102		Socket, Lamp		Appelez-nous	-
44	Y10270101		Cover-light		Appelez-nous	-
45	M0320905		Terminal Ground A		Appelez-nous	-
46	M0217225		Screw		Appelez-nous	-
47	D7844803		Socket Shield		Appelez-nous	-
48	A4554818		Bushing-snap		Appelez-nous	-
49	A4539626		Pop Rivet		Appelez-nous	-
