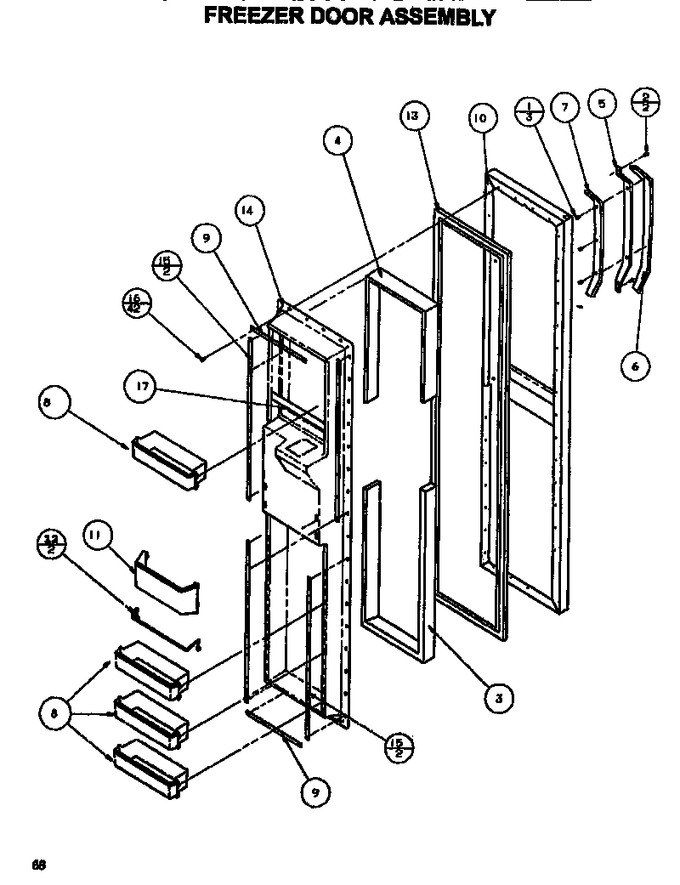

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	R9800670		Kit, Screw   (Replaces: M0211030)				$ 10.58
2	M0215116		Screw		Appelez-nous	-
3	B0523562		Insul. By The Ft.		Appelez-nous	-
4	B0523563		Insulation Ft. K		Appelez-nous	-
5	D7826605		Handle Door		Appelez-nous	-
6	D7863102		Pad, Handle Outer (wht)		Appelez-nous	-
6	D7863104		Pad, Handle Outer (alm)		Appelez-nous	-
7	D7863002		Pad, Handle Inner (wht)		Appelez-nous	-
7	D7863004		Pad, Handle Inner (alm)		Appelez-nous	-
8	10111205		Bucket, Frz Door		Appelez-nous	-
9	C8982801		Retainer, Door Liner		Appelez-nous	-
10	10057605W		Ass`y, Frz. Door (white)		Appelez-nous	-
10	10057605L		Ass`y, Frz. Door (almond)		Appelez-nous	-
11	10534704		Shelf, Half Frz		Appelez-nous	-
12	10237601		Retainer, Package		Appelez-nous	-
13	10359702		Gasket (w Frz Dr)		Appelez-nous	-
14	10111402		Liner I & W Fz Door		Appelez-nous	-
15	D7828601		Retainer, Door Liner		Appelez-nous	-
16	M0219730		Screw				$ 7.65
17	C8907235		Retainer Pkg		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
