SELECT A DIAGRAM

01 - Cabinet Back


02 - Controls & Cabinet (ref/frz)


03 - Crushed Ice Bucket


04 - Door/hinge/trim Fz


05 - Door/hinge/trim Ref


06 - Drain System & Rollers


07 - Evap & Air Handling


08 - Fz Door


09 - Fz Shelving & Ref Light


10 - Ice & Water Cavity


11 - Ice & Water Cavity Assy


12 - Icemaker


13 - Ref Door


14 - Ref Door (cont.)

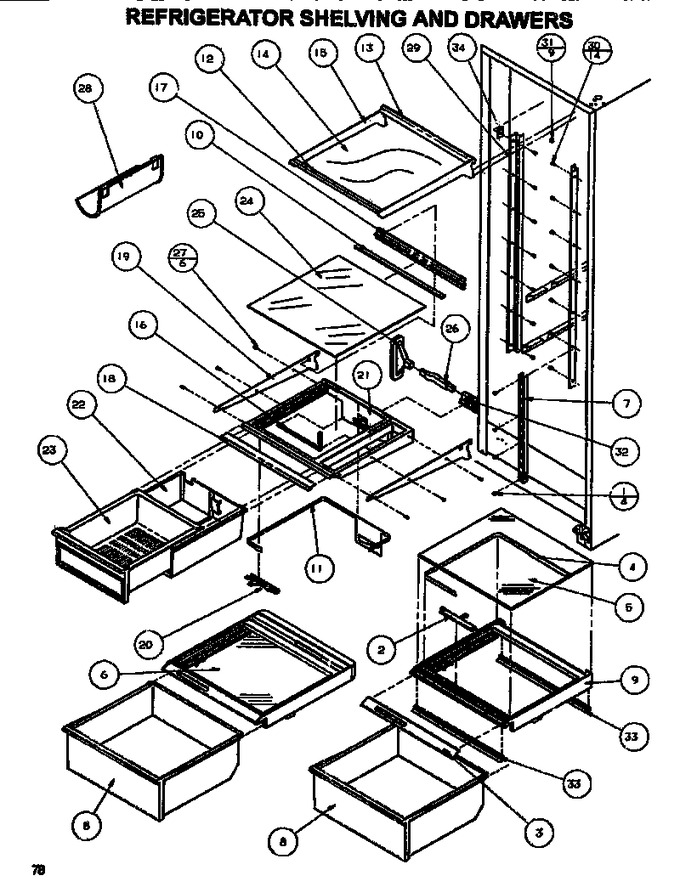

15 - Shelving & Drawers (ref)


16 - Tecumseh Compressor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M0230923		Screw		Appelez-nous	-
2	10289908		Slide Crisper Control		Appelez-nous	-
3	10524301		Trim, Crisper Top Frt		Appelez-nous	-
4	10519302		Band, Crisper		Appelez-nous	-
5	10370030		Glass Shelf		Appelez-nous	-
6	10370027		Glass Shelf		Appelez-nous	-
7	D7599003		Ladder, Center		Appelez-nous	-
8	10471812		Pan, Crisper		Appelez-nous	-
9	10469608		Frame, Crisper		Appelez-nous	-
9	10469609		Frame, Crisper		Appelez-nous	-
10	10043102		Ext. Rear Glass		Appelez-nous	-
11	D7859504		Band M.k. Control		Appelez-nous	-
12	10049938		Trim, Shelf (front)		Appelez-nous	-
12	10049940		Trim, Shelf (front)		Appelez-nous	-
13	C8913613		Trim Rear Shelf		Appelez-nous	-
13	C8913608		Trim		Appelez-nous	-
14	10036061		Glass Shelf		Appelez-nous	-
14	10036070		Glass, Shelf		Appelez-nous	-
15	10579108		Frame, Cant. Shelf		Appelez-nous	-
15	10579107		Frame, Cant. Shelf		Appelez-nous	-
16	A3030353		Gasket		Appelez-nous	-
17	C8990405		Trim, Rear		Appelez-nous	-
18	10049939		Trim, Shelf Frt		Appelez-nous	-
19	D7862933		Side Rail (white)		Appelez-nous	-
19	D7862932		Side Rail, M.k., L.h.		Appelez-nous	-
20	D7859402		Slide-mk Control		Appelez-nous	-
21	D7857005		Frame, M.k		Appelez-nous	-
22	D7698112		Sleeve M.k. V		Appelez-nous	-
23	D7698342		Pan-meatkeeper		Appelez-nous	-
24	10036071		Glass, Mk Shelf		Appelez-nous	-
25	D7873601		Grommet, Mk		Appelez-nous	-
26	D7869001		Xduct M.k. Air		Appelez-nous	-
27	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
28	10448901		Rack, Wine		Appelez-nous	-
29	D7789806		Ladder Cantilever		Appelez-nous	-
29	D7789805		Ladder Cantilever		Appelez-nous	-
30	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
31	M0580007		Grommet, Screw		Appelez-nous	-
32	D7869101		Ext. Air Duct		Appelez-nous	-
33	10523401		Seal, Crisper Front		Appelez-nous	-
33	D7718406		Seal, Meat Pan		Appelez-nous	-
34	C8992301		Bracket		Appelez-nous	-
NI	10582411		Full Glass Shelf Assy		Appelez-nous	-
NI	10582412		Half Glass Shelf Assy		Appelez-nous	-
NI	R0179215		Ass`y, Glass Crisper Top		Appelez-nous	-
NI	R0179214		Ass`y, Glass Crisper Top		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
