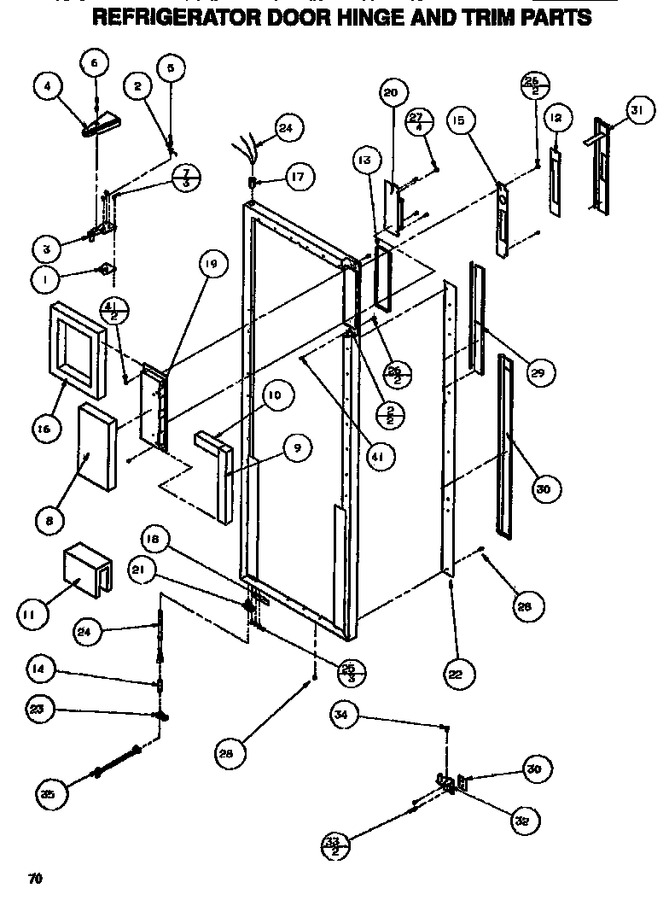

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B8389001		Shim, Top Hinge		Appelez-nous	-
2	M0272803		Lock Washer		Appelez-nous	-
3	10185101		Top Hinge-e Ct		Appelez-nous	-
4	10126404		Cover Hinge L		Appelez-nous	-
4	10126403		Cover, Hinge R W		Appelez-nous	-
5	W11214483		Screw, Mach   (Replaces: M0202321)			Immediately	$ 14.72
6	WP8281196		Screw, Mach   (Replaces: M0202336)			Immediately	$ 7.55
7	R9800670		Kit, Screw   (Replaces: M0226331)				$ 10.58
8	B5612028		Insulation Batt		Appelez-nous	-
9	B5629059		Insulation Batt		Appelez-nous	-
10	B5629060		Insulation Batt		Appelez-nous	-
11	B0523585		Insulation Batt Per Foot		Appelez-nous	-
12	10519901		Gasket, Bracket		Appelez-nous	-
13	B8390501		Gasket Retainer K		Appelez-nous	-
14	10561601		Assy, Hinge Pin		Appelez-nous	-
15	10582202		Retainer, Ref. Trim		Appelez-nous	-
16	10271101		Insul. Batt.		Appelez-nous	-
17	WP67004977		Bushing, Top   (Replaces: C8964401)				$ 8.20
18	10161802		Door Stop		Appelez-nous	-
19	D7832904		Cover,p.c. Board		Appelez-nous	-
20	10613401		Board, L.v. Pc		Appelez-nous	-
21	D7833201		Closure, Door (white)		Appelez-nous	-
22	10582102		Retainer, Ref. Trim		Appelez-nous	-
23	D7838401		Closure, Door (white)		Appelez-nous	-
24	10520904		Harness-ref Dr Kit		Appelez-nous	-
25	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
26	M0230727		Screw		Appelez-nous	-
27	M0217204		Screw		Appelez-nous	-
28	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 8.43
29	D7853806		Cntr Trim Ref Dr/w		Appelez-nous	-
29	D7853807		Trim L Fz Dr Ctr		Appelez-nous	-
30	D7792810		Trim, Ref Door Lw W		Appelez-nous	-
30	D7792811		Trim Ref Door Lw L		Appelez-nous	-
31	10535303		Assy. Upper Trim White		Appelez-nous	-
31	10535304		Assy Trim Upper Keyboard Almon		Appelez-nous	-
32	10163616		Hinge, Bottom		Appelez-nous	-
33	WP67006715		Screw   (Replaces: M0233847)				$ 7.55
34	WP489128		Screw   (Replaces: M0220417)				$ 11.40
35	M0335411		Connector-12 Pin		Appelez-nous	-
