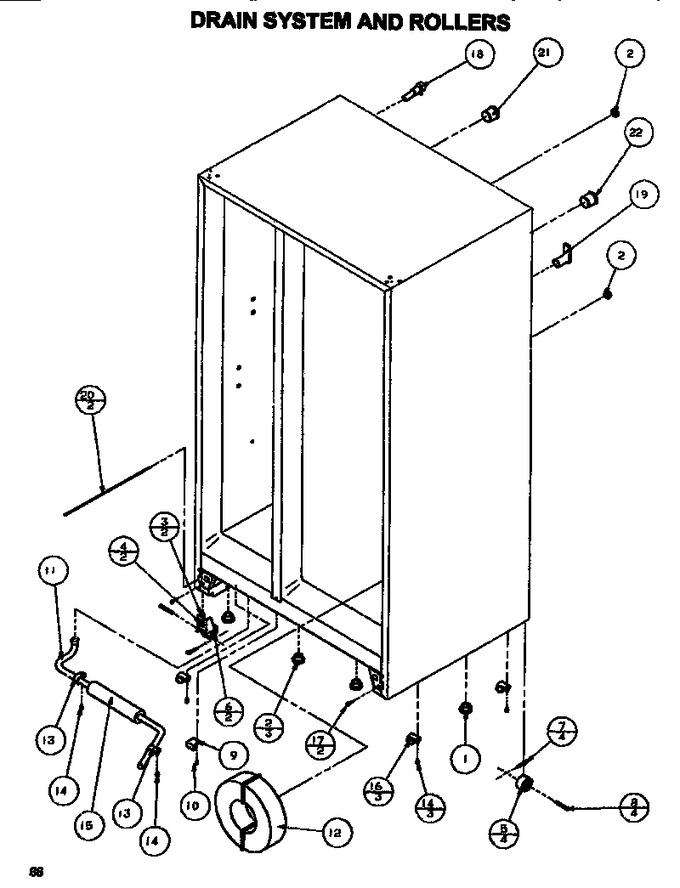

06 - Drain System & Rollers


07 - Evap & Air Handling


08 - Fz Door


09 - Fz Shelving & Ref Light


10 - Ice & Water Cavity


11 - Ice & Water Cavity Assy


12 - Icemaker


13 - Ref Door


14 - Ref Door (cont.)


15 - Shelving & Drawers (ref)


16 - Tecumseh Compressor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A3076901		Plug-button				$ 5.70
2	A3080001		Plug, Button (blk)		Appelez-nous	-
3	C8742401		Assy, Roller Bracket		Appelez-nous	-
4	M0286708		Nut, Speed				$ 47.85
5	M0520102		Roller		Appelez-nous	-
6	M1205302		Rivet				$ 5.85
7	M1200004		Cotter Pin K		Appelez-nous	-
8	M1200202		Pin K		Appelez-nous	-
9	10477201		Bracket, Retainer		Appelez-nous	-
10	WP12990527		Screw   (Replaces: M0219916)			Immediately	$ 8.76
11	10393001		Tube-drain		Appelez-nous	-
12	D7787804		Tank, Coil Water		Appelez-nous	-
13	M0102303		Clamp		Appelez-nous	-
13	10161301		Holder Tube		Appelez-nous	-
14	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
15	A0329814		Tubing Insulation By Inch		Appelez-nous	-
16	M0102325		Clamp		Appelez-nous	-
17	M0204339		Screw Bolt K		Appelez-nous	-
18	B8318803		Fill Tube Assy		Appelez-nous	-
19	C8971902		Tunnel, Heat Ex.		Appelez-nous	-
20	10248501		Shield Elect Box		Appelez-nous	-
21	10045701		End Plate Shield		Appelez-nous	-
22	10187501		Tunnel Wire		Appelez-nous	-
23	10187601		Tunnel Wire		Appelez-nous	-
NI	C8956101		Assy, Roller Bracket		Appelez-nous	-
