SELECT A DIAGRAM

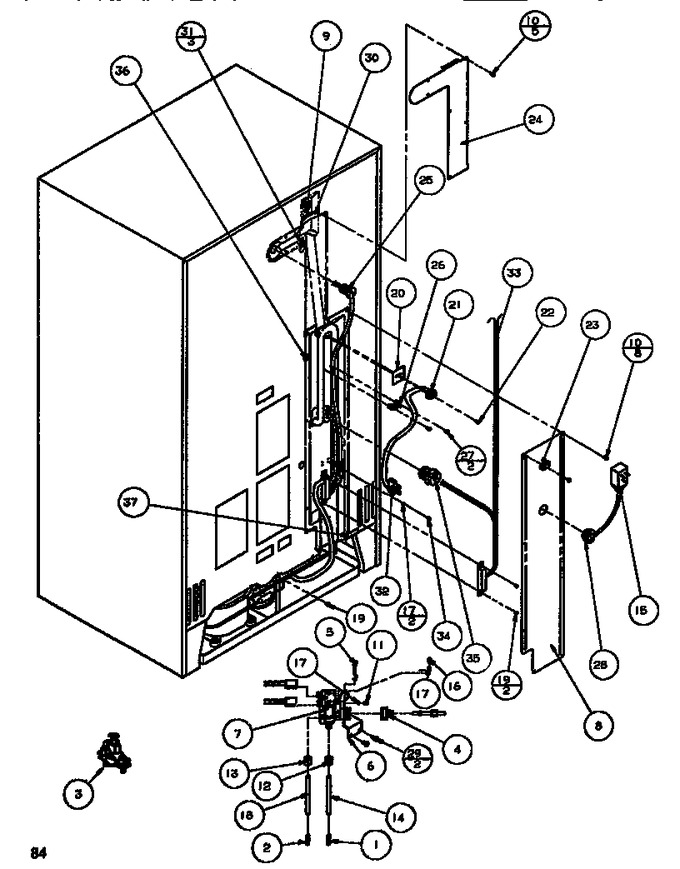

01 - Cabinet Back


02 - Controls & Cabinet (ref/frz)


03 - Door/hinge/trim Ref


04 - Drain & Rollers


05 - Evap & Air Handling


06 - Fz Door


07 - Fz Door


08 - Fz Shelving & Ref Light


09 - Ice & Water Cavity


10 - Ice & Water Cavity


11 - Ice Bucket & Icemaker


12 - Ice Bucket & Icemaker


13 - Machine Compartment


14 - Ref Door


15 - Shelving & Drawers (ref)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A1055101		Spring, Antikink		Appelez-nous	-
2	A1055102		Spring K		Appelez-nous	-
3	A3034802		Valve, Saddle(6mm)		Appelez-nous	-
4	10244902		Coupling		Appelez-nous	-
5	B8374701		Clip, Water Valve		Appelez-nous	-
6	D7701601		Brkt, Water Valve		Appelez-nous	-
7	D7827203		Valve, Water (220/240 Vac, 50		Appelez-nous	-
8	10178404		O.c. Back Cover		Appelez-nous	-
9	WPM0114003		Clip, Speed   (Replaces: M0114003)				$ 11.60
10	M0227217		Screw, Sm		Appelez-nous	-
11	WP489399		Screw   (Replaces: M0232903)				$ 7.30
12	WP627018		Nut, Sleeve   (Replaces: M0753001)				$ 11.51
13	M0753002		Nut, Sleeve		Appelez-nous	-
14	WPB5705307		Tube, Plastic , 68``   (Replaces: B5705321)				$ 13.05
15	B5669005		Cord, Power		Appelez-nous	-
16	M0233803		Screw, Tf		Appelez-nous	-
17	M0272803		Lock Washer		Appelez-nous	-
18	D7787801		Tank, Coil Water		Appelez-nous	-
19	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
20	10377602		Insulation, Term Block		Appelez-nous	-
21	C8969202		Terminal Block		Appelez-nous	-
22	M0229005		Screw K		Appelez-nous	-
23	M0102301		Clamp		Appelez-nous	-
24	10178504		Cover - Wire		Appelez-nous	-
25	10178801		Grommet Wire		Appelez-nous	-
26	Y10203701		Strain Relief		Appelez-nous	-
27	WP489474		Screw 1``   (Replaces: M0211021)			Immediately	$ 8.55
28	A4554813		Snap Bushing		Appelez-nous	-
29	681390		Screw   (Replaces: M0251015)				$ 13.71
30	A3189336		Gasket, Foam		Appelez-nous	-
31	WPM0104106		Clip,cord   (Replaces: M0104101)				$ 8.17
32	10387801		Jumper Powercord		Appelez-nous	-
33	10450001		Harness, Cabinet Wiring		Appelez-nous	-
34	M0233329		Screw,sm		Appelez-nous	-
35	10178701		Grommet Wire		Appelez-nous	-
36	M0104102		Clip, Cord				$ 8.10
37	B8358505		Gasket		Appelez-nous	-
NI	WPW10339879		Tie   (Replaces: M0321202)				$ 8.30
NI	WPA3223101		Insert, Plastic Tube   (Replaces: A3223101)			Immediately	$ 8.21

    View Diagram in Separate Window       Print Part List
