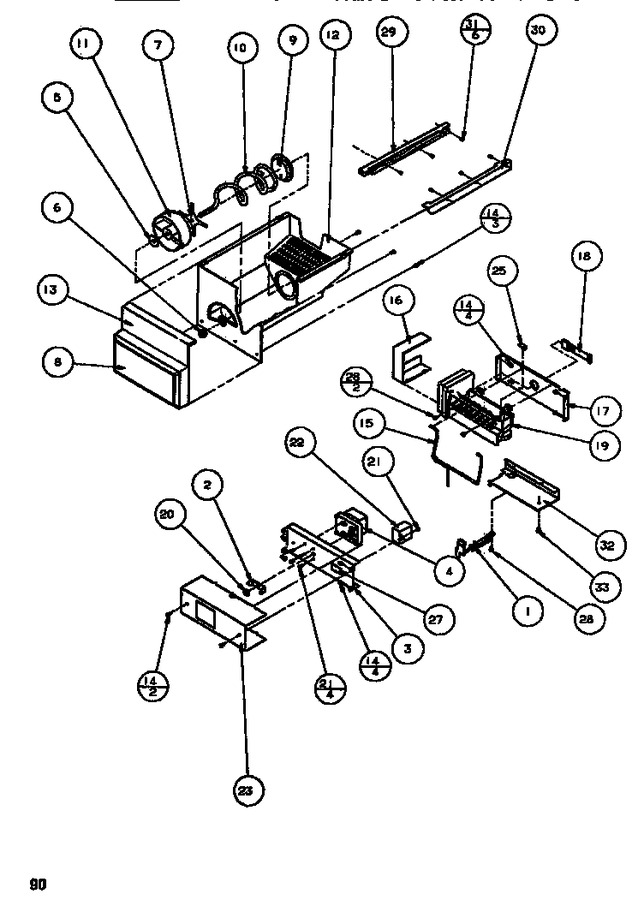

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C8980402 | I.m. Shut Off Assy |
|
- | |||||
| 2 | 10114901 | Driver (ice Maker) |
|
$ 1.61 | |||||
| 2 | D7849501 | Driver |
|
- | |||||
| 3 | D7749205 | Support,auger Motor |
|
- | |||||
| 4 | D7847001 | Motor - Auger |
|
- | |||||
| 4 | 10525202 | Motor, Auger (230 Vac, 50hz) |
|
- | |||||
| 5 | A1061701 | Washer |
|
- | |||||
| 6 | B8385101 | Nut-helix |
|
- | |||||
| 7 | C8964101 | Bar, Breaker |
|
- | |||||
| 8 | C8975308 | Insert, Bucket |
|
- | |||||
| 9 | WPD7749401 | Cap, Helix End (Replaces: D7749401) |
|
$ 29.01 | |||||
| 10 | D7749501 | Helix |
|
- | |||||
| 11 | D7749601 | Wheel Lift |
|
- | |||||
| 12 | D7749707 | Bucket, Ice V |
|
- | |||||
| 13 | D7749802 | Front, Bucket |
|
- | |||||
| 14 | 67006425 | Screw, Sm (Replaces: M0209616) |
|
Immediately | $ 7.30 | ||||
| 15 | D7877001 | Arm,ice Maker Shut Off |
|
- | |||||
| 16 | D7820401 | Cover Im |
|
- | |||||
| 17 | D7821003 | Support-im |
|
- | |||||
| 18 | D7843601 | Harness, Im |
|
- | |||||
| 19 | WPW10190972 | Ice Maker, (220 V 50 Hz) (Replaces: D7846302) |
|
$ 177.49 | |||||
| 20 | M0120501 | Nut |
|
- | |||||
| 21 | WPW10139210 | Screw, Tc (Replaces: M0226528) |
|
$ 8.03 | |||||
| 23 | D7788815 | Cover, Auger Motor |
|
- | |||||
| 25 | B5720301 | Clip |
|
- | |||||
| 27 | A3030305 | Gasket-per Ft |
|
- | |||||
| 28 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 29 | 67005375 | Glide-l Fz (Replaces: D7849903) |
|
$ 312.82 | |||||
| 30 | D7849904 | Glide, Freezer Rh |
|
- | |||||
| 31 | M0213529 | Screw |
|
- | |||||
| 32 | D7846201 | Shield Im |
|
- | |||||
| 33 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| NI | WPW10339879 | Tie (Replaces: M0321202) |
|
$ 8.30 |
