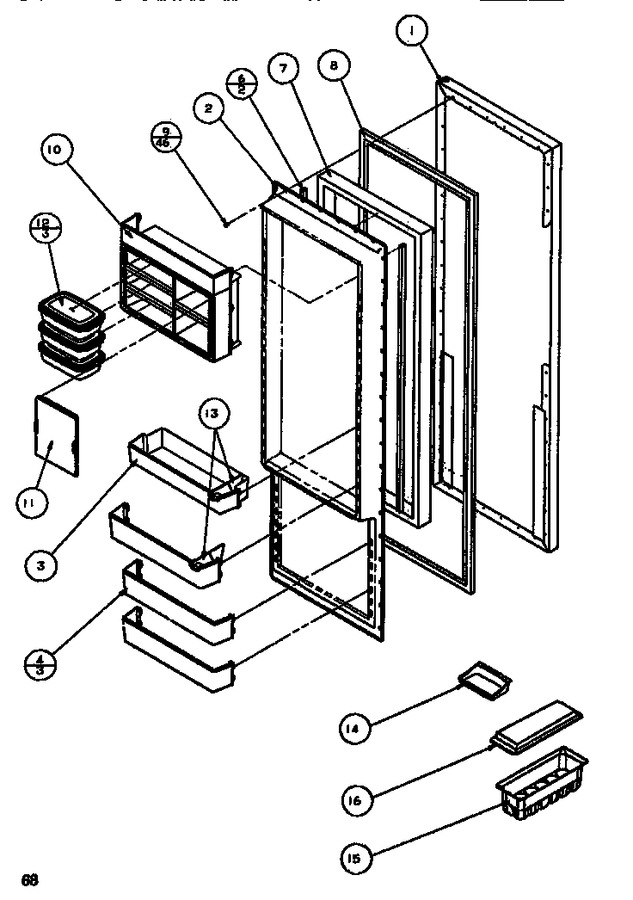

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10284106WQ | Assy, Ref Door Wht Cfc11 |
|
- | |||||
| 1 | 10284106LQ | Rf Dr Fm As Alm Cfc11 |
|
- | |||||
| 2 | D7828203 | Inner Door, Ref |
|
- | |||||
| 3 | D7783313 | Bucket Ref Door |
|
- | |||||
| 4 | 67003697 | Shelf, Ref Door (Replaces: D7783413) |
|
$ 82.08 | |||||
| 6 | C8987104 | Seal, Door Dike |
|
- | |||||
| 7 | B0523562 | Insul. By The Ft. |
|
- | |||||
| 8 | 10359701 | Gasket, Door (w Ref) |
|
- | |||||
| 9 | M0219730 | Screw |
|
$ 7.65 | |||||
| 10 | D7781202 | Module-dairy |
|
- | |||||
| 11 | D7781321 | Door Dairy |
|
- | |||||
| 12 | D7806405 | Container Sec. Ser. |
|
- | |||||
| 13 | D7814609 | Snugger Door |
|
- | |||||
| 14 | 10310901 | Tray, Butter |
|
- | |||||
| 15 | D7695621 | Egg Bucket |
|
- | |||||
| 16 | D7805907 | Cover-bucket |
|
- |
