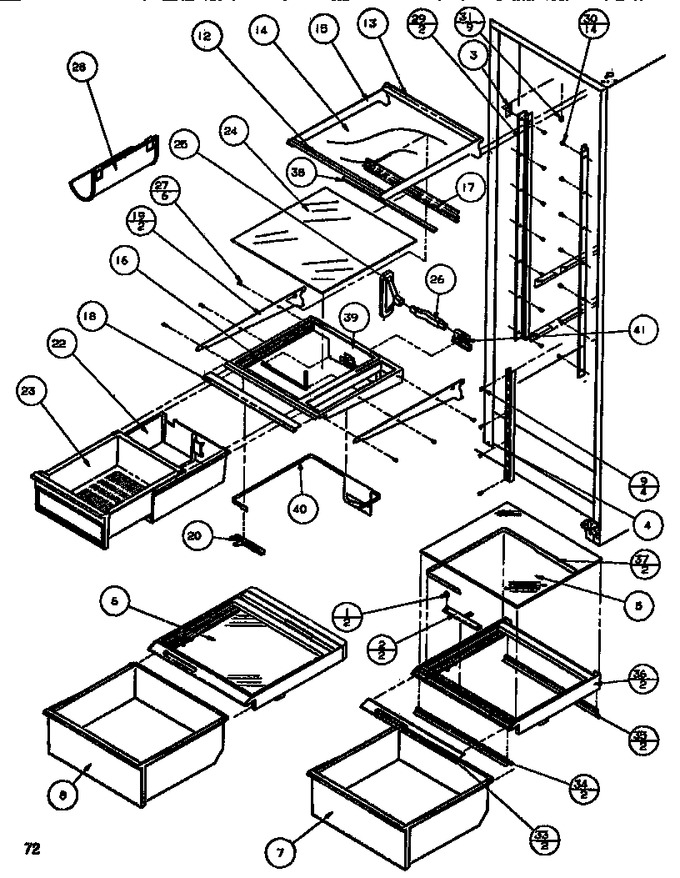

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10038403 | Knob, Crisper Control |
|
- | |||||
| 2 | D7860603 | Slide |
|
- | |||||
| 3 | C8992301 | Bracket |
|
- | |||||
| 4 | D7599003 | Ladder, Center |
|
- | |||||
| 5 | 10036097 | Glass Shelf |
|
- | |||||
| 6 | D7421274 | Glass Crisper Top |
|
- | |||||
| 7 | D7782128 | Pan Crisper |
|
- | |||||
| 8 | D7782027 | Pan, Crisper |
|
- | |||||
| 9 | M0230923 | Screw |
|
- | |||||
| 12 | C8913554 | Trim, Front Shelf |
|
- | |||||
| 12 | C8913548 | Trim Front |
|
- | |||||
| 13 | C8913608 | Trim |
|
- | |||||
| 13 | C8913613 | Trim Rear Shelf |
|
- | |||||
| 14 | 10036098 | Glass Full Shelf |
|
- | |||||
| 14 | 10036095 | Glass Half Shelf |
|
- | |||||
| 15 | D7871020 | Frame, Cont Shelf |
|
- | |||||
| 15 | D7871011 | Frame Cont. Shelf |
|
- | |||||
| 16 | A3263905 | Gasket-per Ft |
|
- | |||||
| 17 | C8990405 | Trim, Rear |
|
- | |||||
| 18 | C8913553 | Trim, Front Shelf |
|
- | |||||
| 19 | D7862931 | Side Rail |
|
- | |||||
| 19 | D7862930 | Side Rail |
|
- | |||||
| 20 | D7859402 | Slide-mk Control |
|
- | |||||
| 22 | D7698111 | Sleeve M.k. |
|
- | |||||
| 23 | D7698334 | Pan, Meat |
|
- | |||||
| 24 | 10036096 | Glass-meatkeeper Shelf |
|
- | |||||
| 25 | D7873601 | Grommet, Mk |
|
- | |||||
| 26 | D7869001 | Xduct M.k. Air |
|
- | |||||
| 27 | M0230028 | Screw, No.8-32 X 5/16 Pph (blk) |
|
- | |||||
| 28 | D7547611 | Rack-bottle |
|
- | |||||
| 29 | D7789807 | Ladder Cantilever |
|
- | |||||
| 30 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 31 | M0580007 | Grommet, Screw |
|
- | |||||
| 33 | D7616683 | Trim, Crisper Fz |
|
- | |||||
| 34 | D7718403 | Seal, Crisper Front |
|
- | |||||
| 35 | D7718404 | Seal, Crisper Rear |
|
- | |||||
| 36 | D7853202 | Frame Crisper |
|
- | |||||
| 36 | D7853205 | Frame Crisper |
|
- | |||||
| 37 | D7859603 | Band Crisper Control |
|
- | |||||
| 38 | 10043102 | Ext. Rear Glass |
|
- | |||||
| 39 | D7857002 | Frame, M.k. |
|
- | |||||
| 40 | D7859503 | Band M.k. Control |
|
- | |||||
| 41 | D7869102 | Ext. Air Duct |
|
- | |||||
| NI | R0179204 | Glass Crisper Top Assy |
|
- | |||||
| NI | 10279125 | Glass, Full Shelf Assembly |
|
- | |||||
| NI | R0179205 | Glass Crisper Top Assy |
|
- | |||||
| NI | 10279126 | Glass, Half Shelf Assembly |
|
- |
