SELECT A DIAGRAM
New Model Search:

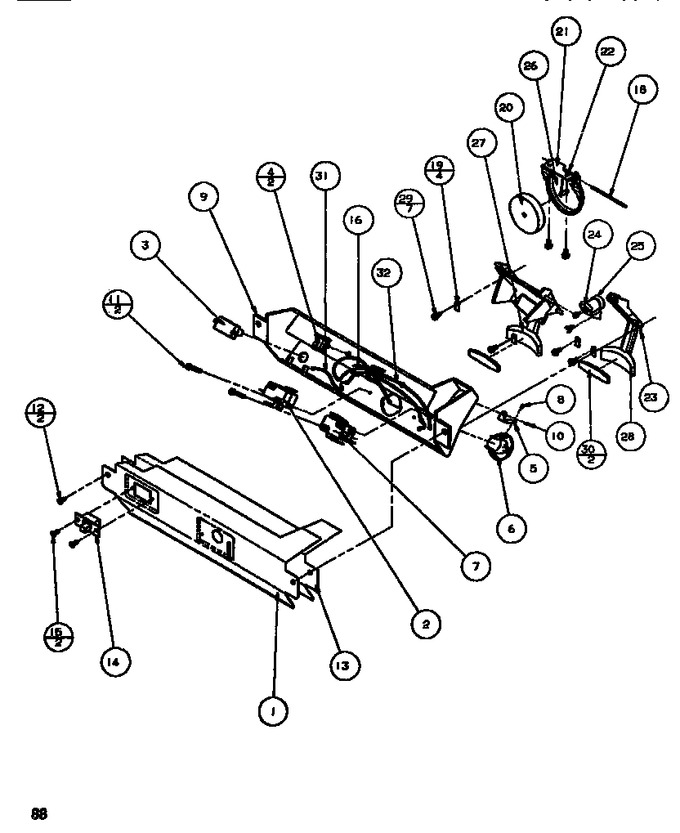

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10131804 | Cover Elect Brkt |
|
- | |||||
| 2 | C8972704 | Switch , Light |
|
- | |||||
| 3 | C8988902 | Switch, Cavity Light |
|
- | |||||
| 4 | B5667304 | Wire Clip |
|
- | |||||
| 5 | 10295701 | Bracket, Socket Mtg |
|
- | |||||
| 6 | D7845102 | Socket, Lamp |
|
- | |||||
| 7 | C8972703 | Switch |
|
- | |||||
| 8 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 8.43 | ||||
| 9 | 10323303 | Bracket, Elec Mtg |
|
- | |||||
| 10 | M0234003 | Screw |
|
- | |||||
| 11 | M0237810 | Screw, T.f. |
|
- | |||||
| 12 | M0216705 | Screw |
|
$ 5.81 | |||||
| 13 | 10419402 | Insulation, Dispenser Control |
|
- | |||||
| 13 | 10419401 | Insulation, Disp Elect Brkt |
|
- | |||||
| 18 | A1061501 | Pin, Chute Door |
|
- | |||||
| 19 | A1061601 | Retainer, Ice Arm |
|
- | |||||
| 20 | B8380701 | Insulation, Chute Door |
|
- | |||||
| 21 | B8380801 | Brkt-chute Door |
|
- | |||||
| 22 | B8380901 | Spring,chute Door |
|
$ 7.18 | |||||
| 23 | B8385401 | Spring, Return |
|
- | |||||
| 24 | C8972501 | Retainer Door Delay |
|
- | |||||
| 25 | C8973601 | Delay, Door |
|
- | |||||
| 26 | 10246601 | Kit,chute Dr No.3 |
|
- | |||||
| 27 | D7750306 | Arm, Ice Actr. L |
|
- | |||||
| 27 | D7750305 | Arm -w Ice Actuator |
|
- | |||||
| 27 | D7750304 | Arm Ice Actuater |
|
- | |||||
| 28 | 10164904 | Arm Water Actr. Almond |
|
- | |||||
| 28 | 10164903 | Arm Water Actr. White |
|
- | |||||
| 28 | 10164902 | Arm,water Actuater |
|
- | |||||
| 29 | M0211116 | Screw, Sm |
|
- | |||||
| 30 | B8390201 | Pad, Actuating |
|
- | |||||
| 31 | D7383456 | Wire Jumper |
|
- | |||||
| 32 | D7383452 | Wire, Jumper |
|
- |
