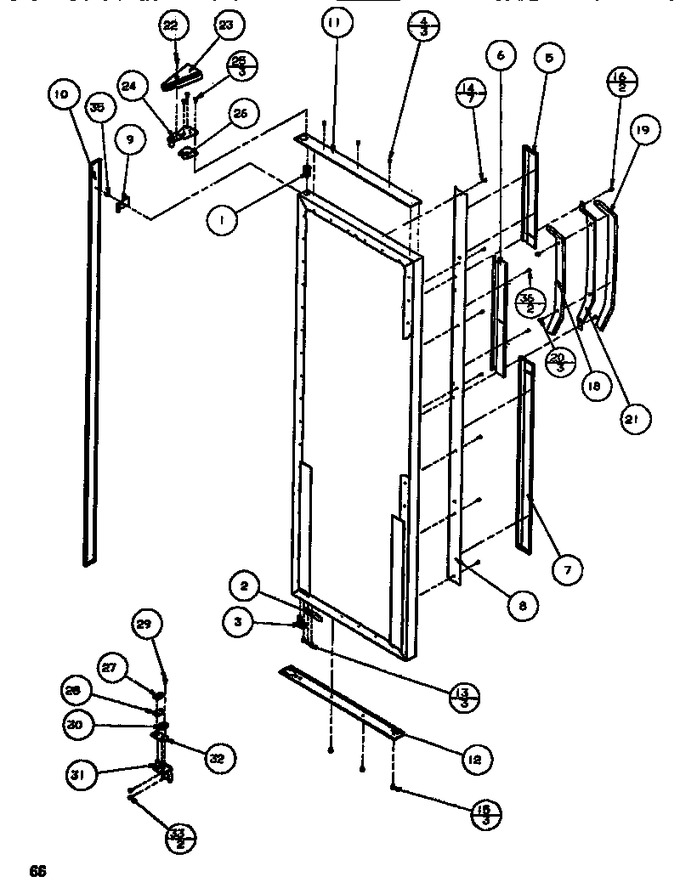

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10393802		Bushing, Door (wht)		Appelez-nous	-
2	C8972404		Stop, Satin Door		Appelez-nous	-
3	R0181181		Kit,dr Closure   (Replaces: D7751402)			Immediately	$ 7.55
4	W11245710		Screw, Sm (stnls)   (Replaces: M0210417)			Immediately	$ 14.75
5	D7852018		Upper Trim Door White		Appelez-nous	-
5	D7852019		Upper Trim Door Almond		Appelez-nous	-
6	D7853807		Trim L Fz Dr Ctr		Appelez-nous	-
6	D7853806		Cntr Trim Ref Dr/w		Appelez-nous	-
7	D7792811		Trim Ref Door Lw L		Appelez-nous	-
7	D7792810		Trim, Ref Door Lw W		Appelez-nous	-
8	D7793202		Ref. Trim, Retainer		Appelez-nous	-
9	10274101		Clip, Trim		Appelez-nous	-
10	10274201		Trim Vertical		Appelez-nous	-
11	10271801		Trim-ref Door Top		Appelez-nous	-
12	10271701		Trim-ref Door Bot		Appelez-nous	-
13	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
14	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 8.43
15	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 8.43
16	WP3400094		Screw   (Replaces: M0253942)				$ 9.26
18	D7863002		Pad, Handle Inner (wht)		Appelez-nous	-
18	D7863004		Pad, Handle Inner (alm)		Appelez-nous	-
19	D7863102		Pad, Handle Outer (wht)		Appelez-nous	-
19	D7863104		Pad, Handle Outer (alm)		Appelez-nous	-
20	M0215116		Screw		Appelez-nous	-
21	D7826605		Handle Door		Appelez-nous	-
22	WP8281196		Screw, Mach   (Replaces: M0202336)			Immediately	$ 7.55
23	10126404		Cover Hinge L		Appelez-nous	-
23	10126403		Cover, Hinge R W		Appelez-nous	-
24	10185101		Top Hinge-e Ct		Appelez-nous	-
25	R9800670		Kit, Screw   (Replaces: M0226331)				$ 10.58
26	B8389001		Shim, Top Hinge		Appelez-nous	-
27	B8387701		Shim, Door Closure		Appelez-nous	-
28	B8387702		Shim, Door Closure		Appelez-nous	-
29	WP489128		Screw   (Replaces: M0220417)				$ 11.40
30	R0181181		Kit,dr Closure   (Replaces: D7748301)			Immediately	$ 7.55
31	10163610		Bottom Hinge Assy		Appelez-nous	-
31	10163602		Rh Bot Hinge-bk E Ct		Appelez-nous	-
32	10399502		Kit,btm Hinge Shim		Appelez-nous	-
32	10399501		Kit,btm Hinge Shim		Appelez-nous	-
33	WP67006715		Screw   (Replaces: M0233847)				$ 7.55
35	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 8.43
36	R9800670		Kit, Screw   (Replaces: M0211030)				$ 10.58
