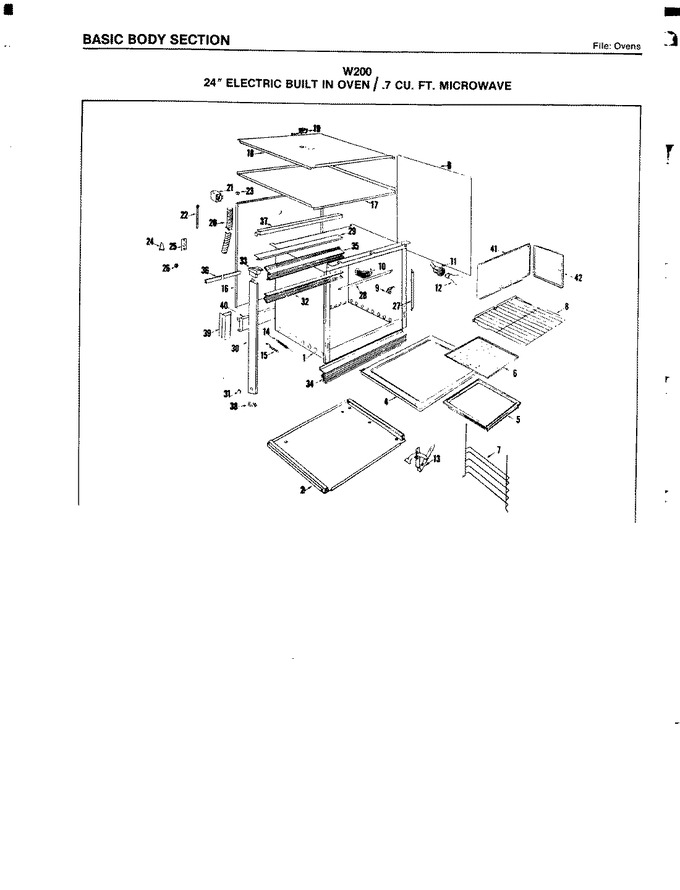

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10124350		Not Required Part Or See Note Body Unit (not Avail For Repl)		Appelez-nous	-
2	W11233072		Screw   (Replaces: Y707347)			Immediately	$ 13.25
2	701186		Base, Main		Appelez-nous	-
3	701314		Wrapper, Side		Appelez-nous	-
4	701188		Liner, Porcelain		Appelez-nous	-
5	700161		Pan, Broil		Appelez-nous	-
6	700162		Insert-broiler Pan		Appelez-nous	-
7	701228		Glide, Rack		Appelez-nous	-
8	Y701266		Rack, Oven		Appelez-nous	-
9	700101		Clip Thermo Bulb		Appelez-nous	-
10	700778		Light Shield		Appelez-nous	-
10	W11233072		Screw   (Replaces: Y707347)			Immediately	$ 13.25
11	701285		Receptacle, Light		Appelez-nous	-
12	40A15		Bulb, Oven Light   (Replaces: 771133)			Immediately	$ 1.98
13	W11233072		Screw   (Replaces: Y707347)			Immediately	$ 13.25
13	700485		Oven Cam Door		Appelez-nous	-
13	700486		Oven Cam Door R.h.		Appelez-nous	-
14	701290		Spring, Oven Door		Appelez-nous	-
15	W11233072		Screw   (Replaces: Y707347)			Immediately	$ 13.25
15	771019		Bracket		Appelez-nous	-
15	701240		Insulation		Appelez-nous	-
15	701235		Insulation		Appelez-nous	-
15	DE81-04729A		Insulation   (Replaces: 701236)				$ 120.91
15	701234		Insulation		Appelez-nous	-
15	701239		Insulation		Appelez-nous	-
16	701313		Wrapper, Back		Appelez-nous	-
17	701316		Wrapper		Appelez-nous	-
18	701317		Wrapper, Top		Appelez-nous	-
18	W11233072		Screw   (Replaces: Y707347)			Immediately	$ 13.25
19	701254		Receptacle		Appelez-nous	-
20	701201		Conduit		Appelez-nous	-
21	700765		Connector Conduit		Appelez-nous	-
22	771083		Fastener		Appelez-nous	-
23	771126		Insulator-bushing		Appelez-nous	-
24	WPA0317601		Terminal-bombnose   (Replaces: 771240)				$ 7.86
25	771149		Plate Grounding		Appelez-nous	-
26	W11233072		Screw   (Replaces: Y707347)			Immediately	$ 13.25
26	707123		Nut		Appelez-nous	-
26	WP7101P072-60		Screw 10-24--3/8   (Replaces: Y708311)				$ 7.25
27	701281		Seal, Door		Appelez-nous	-
28	701282		Seal, Door		Appelez-nous	-
29	701303		Trim, Top		Appelez-nous	-
30	DE81-08869A		Trim, Side (rt)   (Replaces: 701305)				$ 464.49
30	701272		Screw		Appelez-nous	-
30	701304		Trim, Side (lt)		Appelez-nous	-
31	771155		Plug Button		Appelez-nous	-
32	701306		Trim, Front		Appelez-nous	-
32	DE81-04576A		Screw   (Replaces: 701275)				$ 402.83
33	DE81-02363A		Cap   (Replaces: 701196)				$ 210.61
34	701214		Extrusion		Appelez-nous	-
35	701212		Extrusion		Appelez-nous	-
36	701213		Extrusion		Appelez-nous	-
37	701309		Trim, Top		Appelez-nous	-
38	701197		Cap, End (lt)		Appelez-nous	-
38	701198		Cap, End (rt)		Appelez-nous	-
39	W11233072		Screw   (Replaces: Y707347)			Immediately	$ 13.25
39	DE81-07788A		Flue Box Vertical   (Replaces: 701220)	1			$ 276.48
40	701270		Screw		Appelez-nous	-
40	701221		Flue Box Horizontal		Appelez-nous	-
41	701248		Liner, Back		Appelez-nous	-
42	701250		Liner, Side		Appelez-nous	-
42	701237		Liner Side		Appelez-nous	-
