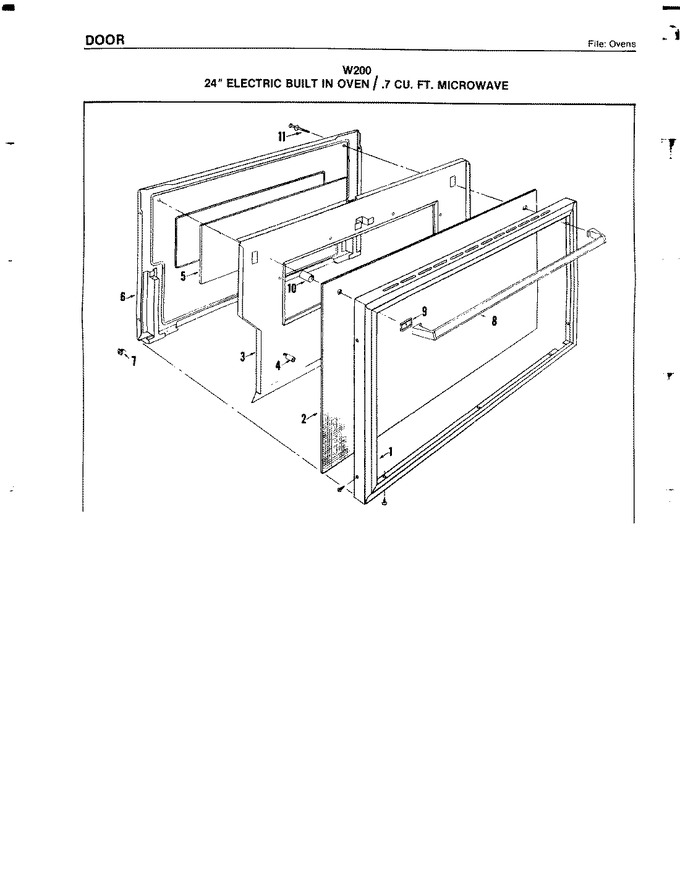

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	701302		Trim, Oven Door Frame		Appelez-nous	-
2	701223		Glass, Oven Door (outer)		Appelez-nous	-
3	700186		Screw		Appelez-nous	-
3	701238		Insulation		Appelez-nous	-
3	701283		Shield, Wool		Appelez-nous	-
4	DE81-07787A		Fastener   (Replaces: 701219)				$ 276.96
5	701224		Glass, Oven Door (inner)		Appelez-nous	-
6	701249		Liner, Door		Appelez-nous	-
7	771179		Screw		Appelez-nous	-
7	771090		Fastener-push In		Appelez-nous	-
8	701230		Handle, Door		Appelez-nous	-
9	701287		Spacer, Handle		Appelez-nous	-
10	701288		Spacer Handle(tube Inner Door)		Appelez-nous	-
11	701268		Screw		Appelez-nous	-
