Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 701259 Plate Appelez-nous -
2 701200 Clock Auto 1 Special Order $ 80.34

3 701241 Knob, Clock Appelez-nous -
4 701217 Fastener Clock Mounting Appelez-nous -
5 700744 Screw Appelez-nous -
5 701298 Thermostat Appelez-nous -
6 701245 Knob, Thermostat Appelez-nous -
7 DE81-10269A Switch, Selector   (Replaces: 701296) Special Order $ 1,098.74

8 700744 Screw Appelez-nous -
9 701244 Knob, Selector Switch Appelez-nous -
10 701233 Light, Indicator Appelez-nous -
11 701293 Switch, Light Appelez-nous -
12 771143 Hex Nut Appelez-nous -
13 771167 Ring Appelez-nous -
14 771012 Switch, Bezel Appelez-nous -
15 701304 Trim, Side (lt) Appelez-nous -
16 701227 Panel, Glass Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

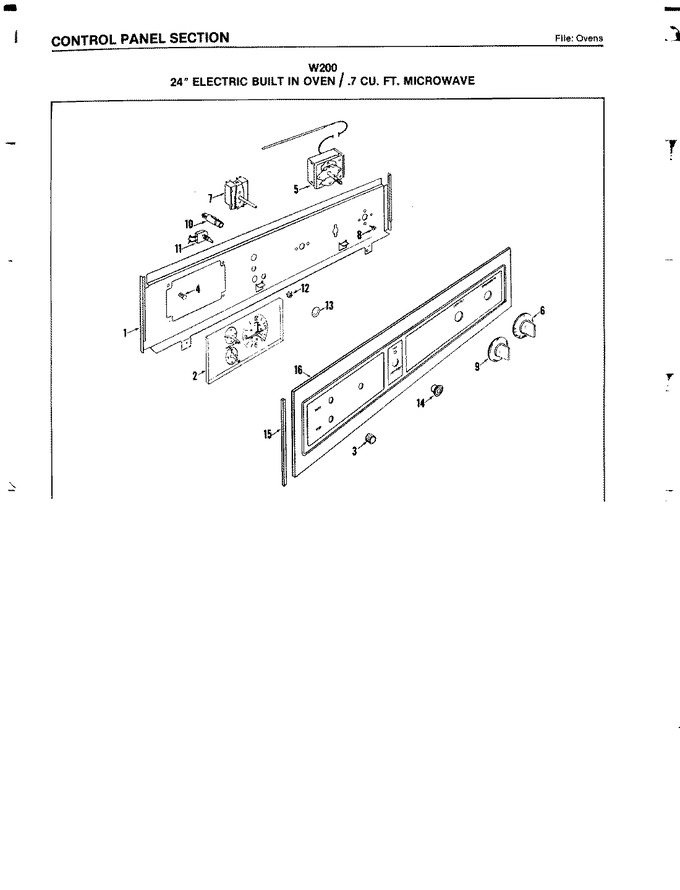

Diagram for W200
