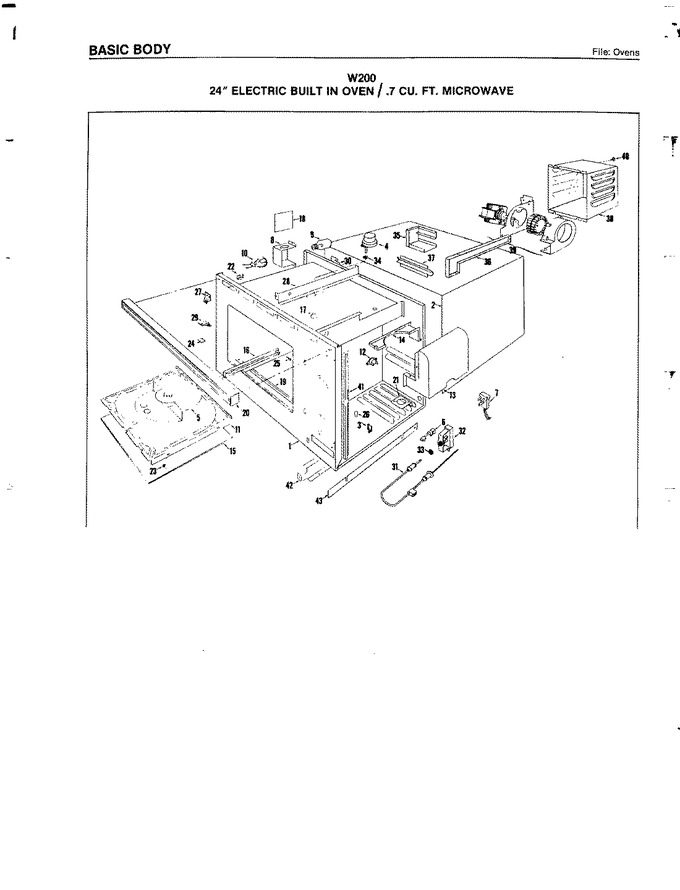

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10124350		Not Required Part Or See Note Wrapper-base & Back (almond)		Appelez-nous	-
2	WP74003976		Screw Wrapper   (Replaces: Y700418)				$ 6.80
2	701315		Wrapper		Appelez-nous	-
3	771087		Fastener-stand Off		Appelez-nous	-
4	701252		Motor Stir		Appelez-nous	-
4	W11233072		Screw   (Replaces: Y707347)			Immediately	$ 13.25
5	DE81-04238A		Fan Stirrer   (Replaces: 701215)				$ 257.94
6	771269		Bushing		Appelez-nous	-
7	DE81-04133A		Cord Power   (Replaces: 701202)				$ 115.28
8	WP74003976		Screw Wrapper   (Replaces: Y700418)				$ 6.80
8	DE81-02474A		Cover Lamp   (Replaces: 701203)				$ 382.46
9	Y701247		Bulb, Light		Appelez-nous	-
10	701286		Receptacle, Light		Appelez-nous	-
11	701208		Cover Stir		Appelez-nous	-
12	701295		Switch, Thermo Cutout		Appelez-nous	-
13	701209		Duct Outer		Appelez-nous	-
14	701210		Duct Inner		Appelez-nous	-
15	701225		Shelf, Glass		Appelez-nous	-
16	771107		Glide Tray		Appelez-nous	-
17	701229		Grommet		Appelez-nous	-
18	DE81-06934A		Shield, Light   (Replaces: 701284)				$ 386.50
19	701307		Trim, Oven		Appelez-nous	-
20	701308		Trim, Vent		Appelez-nous	-
20	W11233072		Screw   (Replaces: Y707347)			Immediately	$ 13.25
21	701179		Angle-fuse		Appelez-nous	-
22	771084		Fastener-door Mounting		Appelez-nous	-
23	Y701266		Rack, Oven		Appelez-nous	-
24	701261		Plate		Appelez-nous	-
25	771188		Screw		Appelez-nous	-
26	771088		Fastener Purse Lock		Appelez-nous	-
27	701193		Element, Bake 208v		Appelez-nous	-
27	350956		Paint   (Replaces: 701255)				$ 48.61
28	WP353244		Angle-oven   (Replaces: 701181)			Immediately	$ 78.00
29	701192		Bracket, Hinge Bottom		Appelez-nous	-
30	701277		Screw		Appelez-nous	-
30	701260		Plate		Appelez-nous	-
30	WP74003976		Screw Wrapper   (Replaces: Y700418)				$ 6.80
31	701264		Probe, Roast		Appelez-nous	-
32	700652		Receptacle Mounting		Appelez-nous	-
33	700653		Nut Receptacle		Appelez-nous	-
34	701312		Washer, Seal		Appelez-nous	-
35	701184		Baffle, Air Exhaust		Appelez-nous	-
36	701185		Baffle, Air Exhaust		Appelez-nous	-
37	701267		Rivet		Appelez-nous	-
37	701253		Nut		Appelez-nous	-
37	701207		Cover Wire		Appelez-nous	-
37	W11233072		Screw   (Replaces: Y707347)			Immediately	$ 13.25
37	701280		Screw		Appelez-nous	-
38	DE81-05579A		Cover   (Replaces: 701206)				$ 393.30
39	701187		Blower Assembly		Appelez-nous	-
40	W11233072		Screw   (Replaces: Y707347)			Immediately	$ 13.25
41	701182		Angle-side		Appelez-nous	-
42	701183		Support, Angle		Appelez-nous	-
43	701262		Plate		Appelez-nous	-
