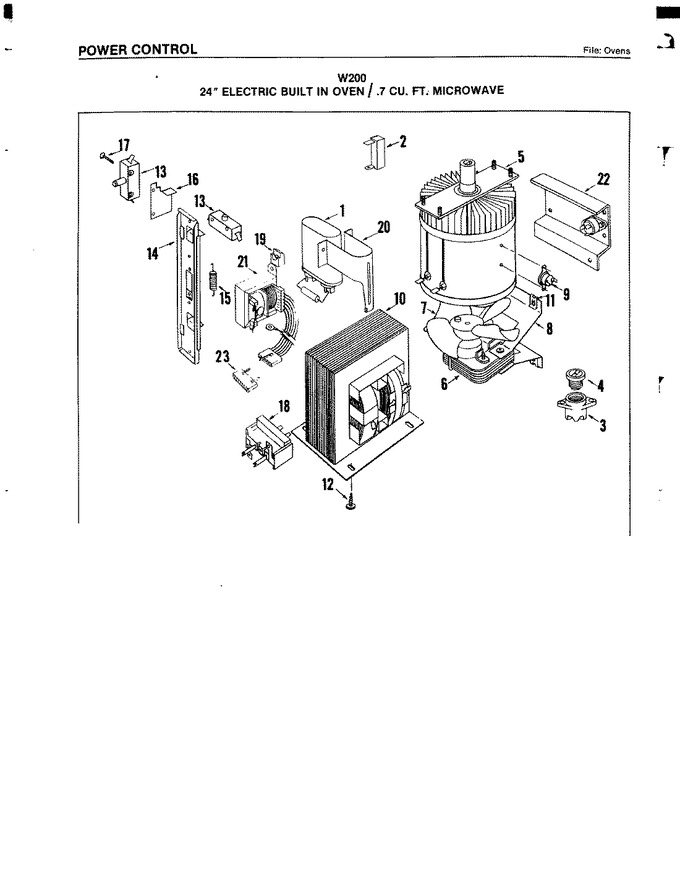

08 - Power Control (microwave)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	700187		Capacitor		Appelez-nous	-
2	701269		Screw		Appelez-nous	-
2	771068		Diode		Appelez-nous	-
3	771212		Socket Fuse		Appelez-nous	-
4	771094		Fuse		Appelez-nous	-
4	W11233072		Screw   (Replaces: Y707347)			Immediately	$ 13.25
5	771145		Nut Magnetron Mounting		Appelez-nous	-
5	700700		Magnetron				$ 421.42
6	700190		Motor, Fan		Appelez-nous	-
7	DE81-04239A		Fan Blade   (Replaces: 701216)				$ 295.76
8	701278		Screw		Appelez-nous	-
8	701189		Bracket, Motor Mtg		Appelez-nous	-
8	M0282005		Nut,no.6-32 Hex   (Replaces: Y707149)				$ 7.42
9	771180		Screw		Appelez-nous	-
9	DE81-07055A		Switch Thermostat   (Replaces: 700633)				$ 224.36
10	DE81-08894A		Transformer   (Replaces: 701299)				$ 141.53
11	DE81-07786A		Fastener   (Replaces: 701218)				$ 191.86
12	771327		Wire, Hi Voltage		Appelez-nous	-
12	700188		Screw		Appelez-nous	-
12	701319		Wire, Hi-volt		Appelez-nous	-
12	701318		Wire, Hi-volt		Appelez-nous	-
13	DE81-04730A		Kit Actuating Switches   (Replaces: 701242)				$ 100.37
14	701279		Screw		Appelez-nous	-
14	DE81-08271A		Interlocks   (Replaces: 701243)				$ 406.73
15	701271		Spring		Appelez-nous	-
16	DE81-08883A		Bracket, Safety Switch Mtg   (Replaces: 701190)				$ 273.97
17	701279		Screw		Appelez-nous	-
18	701297		Switch, Selector		Appelez-nous	-
19	701289		Spacer		Appelez-nous	-
20	DE81-04605A		Bracket, Capacitor Mtg   (Replaces: 701191)				$ 191.80
21	701265		Protector		Appelez-nous	-
21	701232		Main Harness		Appelez-nous	-
21	701300		Transformer		Appelez-nous	-
22	701310		Triac Heat Sink Assembly		Appelez-nous	-
22	WP74003976		Screw Wrapper   (Replaces: Y700418)				$ 6.80
23	701263		Plug 9-pin		Appelez-nous	-
