Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 701257 Panel, Door Appelez-nous -
2 701226 Glass, Door Appelez-nous -
3 701231 Handle, Door Appelez-nous -
4 DE81-04416A Button, Door   (Replaces: 701195) Special Order $ 229.50

5 701251 Liner, Door Appelez-nous -
6 701273 Screw Appelez-nous -
7 DE81-06627A Frame   (Replaces: 701222) Special Order $ 509.17

8 701292 Spring Appelez-nous -
9 701204 Cover Appelez-nous -
10 701246 Latch Assembly Appelez-nous -
11 701291 Spring, Extension Appelez-nous -
12 701178 Adhesive Appelez-nous -
12 701180 Angle-handle Appelez-nous -
13 W11772394 Screw   (Replaces: Y701274) In-Stock Immediately $ 11.90

13 701280 Screw Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

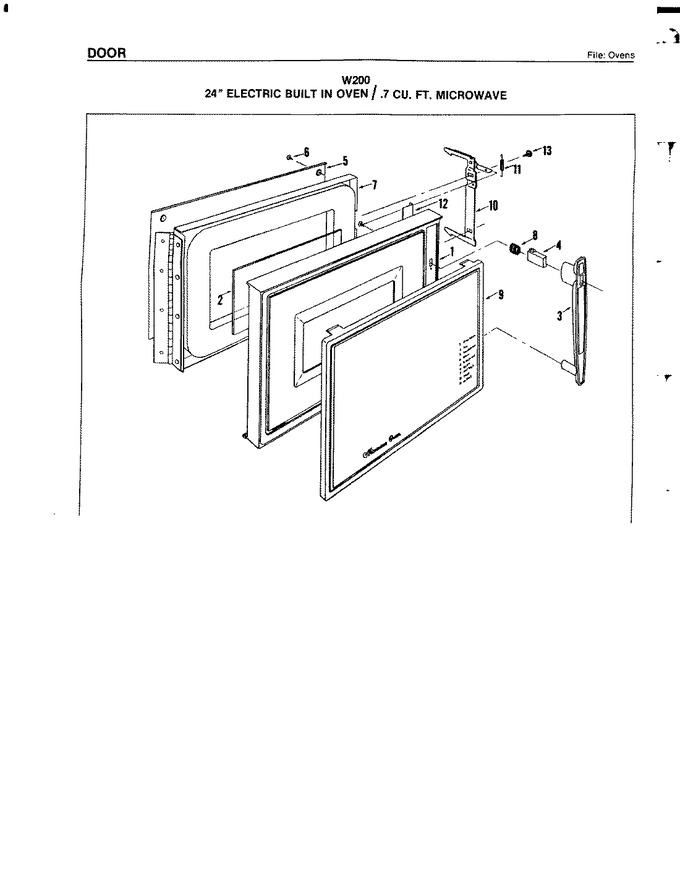

Diagram for W200
