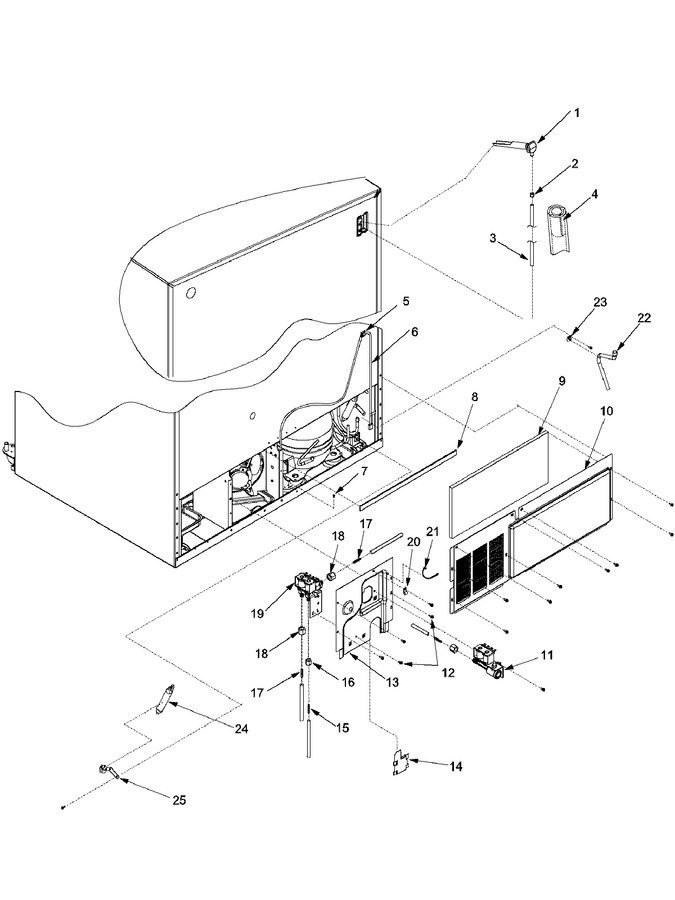

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12522202 | Elbow, Fill Tube |
|
- | |||||
| 2 | WPM0114003 | Clip, Speed (Replaces: M0114003) |
|
$ 11.05 | |||||
| 3 | WPB5705307 | Tube, Plastic 74.5`` X (Replaces: B5705328) |
|
$ 12.43 | |||||
| 4 | WPA3223101 | Insert, Plastic Tube (Replaces: A3223101) |
|
Immediately | $ 7.82 | ||||
| 5 | WPM0104106 | Clip (Replaces: M0104106) |
|
$ 7.78 | |||||
| 6 | 67002229 | Cord, Power |
|
- | |||||
| 7 | WP489399 | Screw, Ca (Replaces: M0239216) |
|
$ 6.95 | |||||
| 8 | B5759649 | Gasket, Mc Back |
|
- | |||||
| 9 | B0523599 | Insulation, Mc Back |
|
- | |||||
| 10 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 6.95 | ||||
| 10 | 12575101ED | Back, Mach Comp |
|
- | |||||
| 11 | 681390 | Screw (Replaces: M0251015) |
|
$ 13.06 | |||||
| 11 | 67002168 | Valve, Primary Water |
|
- | |||||
| 12 | 681390 | Screw (Replaces: M0251015) |
|
$ 13.06 | |||||
| 13 | 12575201ED | Cover, Water Valve |
|
- | |||||
| 14 | 67002380 | Guard, Water Valve |
|
- | |||||
| 15 | A1055105 | Spring, Anti Kink |
|
- | |||||
| 16 | WP627018 | Nut, Sleeve (Replaces: M0753001) |
|
$ 10.97 | |||||
| 17 | A1055104 | Spring, Anti-kink |
|
- | |||||
| 18 | M0753002 | Nut, Sleeve |
|
- | |||||
| 19 | 67002169 | Valve, Secondary Water |
|
- | |||||
| 20 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 6.95 | ||||
| 20 | M0108001 | Clamp, Tube |
|
- | |||||
| 21 | M0322202 | Tie Wire |
|
- | |||||
| 22 | 12580401 | Tube, Drain |
|
- | |||||
| 23 | WP489069 | Screw (Replaces: M0220617) |
|
Immediately | $ 7.86 | ||||
| 23 | M0102303 | Clamp |
|
- | |||||
| 24 | WPB2150504 | Drier (Replaces: 67002232) |
|
$ 130.46 | |||||
| 25 | 10547002 | Clip, Drier |
|
- | |||||
| 25 | 67001510 | Screw |
|
- |
