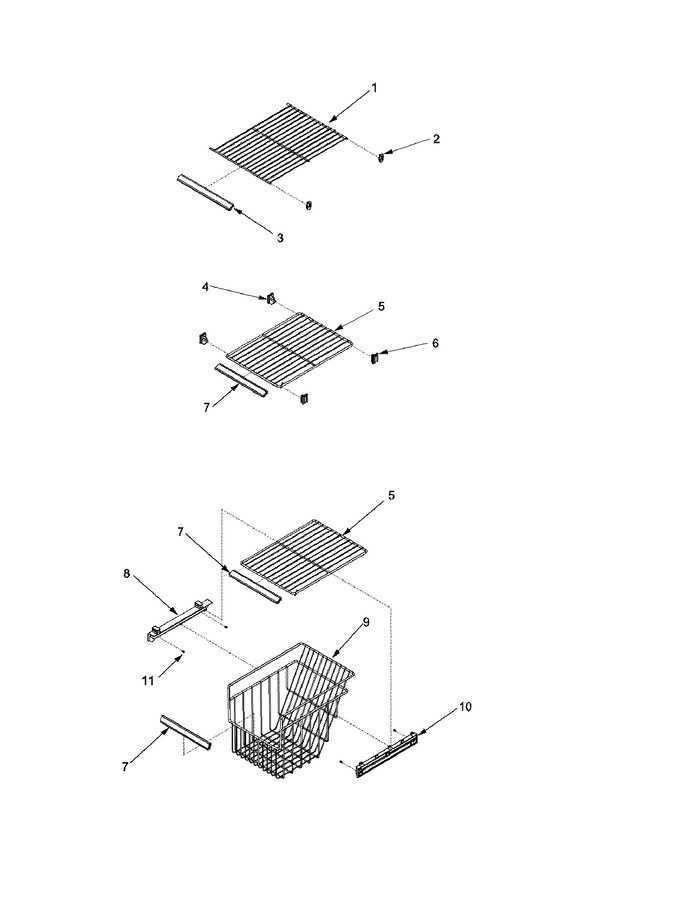

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12570602		Shelf, Upr Fz		Appelez-nous	-
2	C8973801		Support, Frz Shelf				$ 8.35
3	12314102		Trim, Basket/shelf		Appelez-nous	-
4	12015002		Support, Shelf (lt)				$ 7.38
5	12570502		Shelf, Lwr Fz		Appelez-nous	-
6	WP10941102		Support, Shelf (rt)				$ 11.81
7	12314101		Trim, Basket/shelf		Appelez-nous	-
8	12015101		Rail, Shelf (lt)		Appelez-nous	-
9	12570302		Basket,lwr Fz-24		Appelez-nous	-
10	10972802		Rail, Shelf (rt)		Appelez-nous	-
11	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.00

    View Diagram in Separate Window       Print Part List
