SELECT A DIAGRAM

01 - Cabinet Back


02 - Controls


03 - Crisper Assy


04 - Deli And Ref Shelf


05 - Evap Fan Assy And Lights


06 - Evaporator Assy And Rollers


07 - Fz Door And Facade


08 - Fz Shelf


09 - Handles And Trim(blk)


10 - Hinges


11 - Ice Bucket Assy


12 - Light Covers And Toe Grille


13 - Lights And Ice Maker


14 - Machine Compartment


15 - Ref/fz Door And Shelf


16 - Supplemental Information


17 - Wiring Information

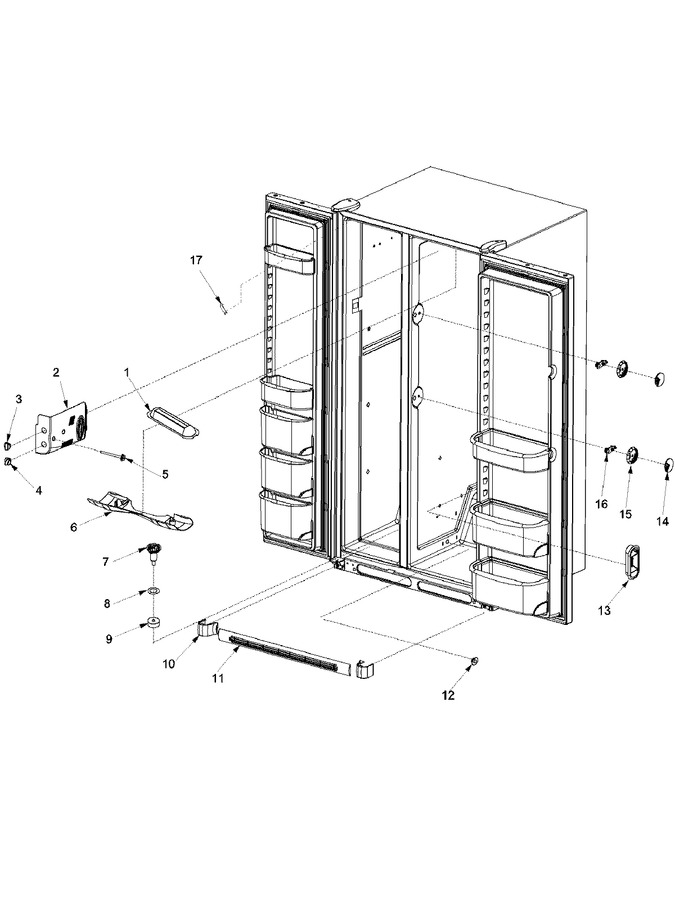

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67002221		Housing, Up Ref		Appelez-nous	-
2	67002222		Cover, Export Control		Appelez-nous	-
3	12581102		Knob, Control		Appelez-nous	-
4	12581101		Knob, Control		Appelez-nous	-
5	M0231426		Screw		Appelez-nous	-
6	12602907		Cover, Light		Appelez-nous	-
7	12456901		Funnel, Drain		Appelez-nous	-
8	WPM0500703		Seal, O Ring   (Replaces: M0500703)				$ 10.92
9	WPB8381501		Gasket, Drain Tube   (Replaces: B8381501)				$ 7.41
10	12630301B		Cover, Lwr Hinge (blk)				$ 12.88
11	12627302		Clip, Toe Grille				$ 5.84
11	67002224		Toe Grille Assy (blk)				$ 38.59
12	12567101		Plug, Air Tunnel		Appelez-nous	-
13	12634801		Grille, Return Air		Appelez-nous	-
14	67002180		Grille, Chiller		Appelez-nous	-
15	67002225		Control, Chiller		Appelez-nous	-
16	12572701		Clip, Chiller Control		Appelez-nous	-
17	67003485		Cover, Corner (blk)   (Replaces: 12587702B)			Immediately	$ 21.09

    View Diagram in Separate Window       Print Part List
