SELECT A DIAGRAM

01 - Cabinet Back


02 - Controls


03 - Crisper Assy


04 - Deli And Ref Shelf


05 - Evap Fan Assy And Lights


06 - Evaporator Assy And Rollers


07 - Fz Door And Facade


08 - Fz Shelf


09 - Handles And Trim(blk)


10 - Hinges


11 - Ice Bucket Assy


12 - Light Covers And Toe Grille


13 - Lights And Ice Maker


14 - Machine Compartment

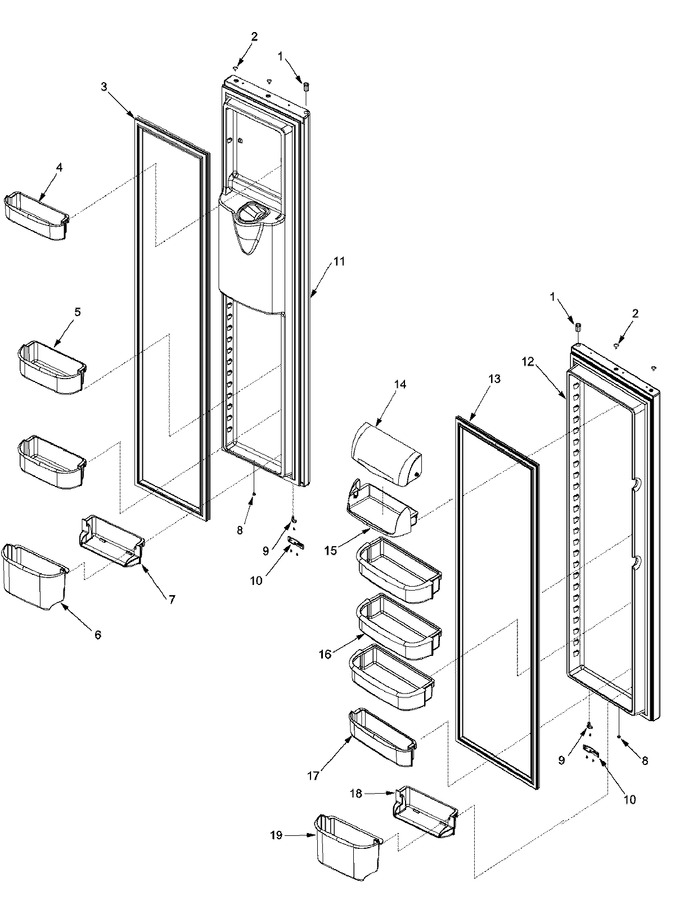

15 - Ref/fz Door And Shelf


16 - Supplemental Information


17 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10961002		Bushing, Door (blk)		Appelez-nous	-
2	M0311604		Plug, Button (blk)		Appelez-nous	-
3	W10133491		Gasket, Fz Dr (blk)   (Replaces: 12591502B)				$ 359.89
4	12556901		Bucket, Upr Fz Dr		Appelez-nous	-
5	12557501		Bucket, Lwr Fz Dr				$ 17.64
6	12569302		Bucket, Fz Tilt Xxx		Appelez-nous	-
7	12569401		Frame, Tilt Bucket		Appelez-nous	-
8	A3080001		Plug, Button (blk)		Appelez-nous	-
9	R0181181		Closure, Door (blk)   (Replaces: 12113204)			Immediately	$ 7.55
9	WP8281227		Screw, Tc   (Replaces: M0220432)				$ 10.96
10	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
10	12636401B		Stop, Door (blk)				$ 10.80
11	67002255		Fz Dr Foam Assy(blk)		Appelez-nous	-
12	67002206		Ref Dr Foam Assy(blk)		Appelez-nous	-
13	W10840101		Gasket, Ref Dr (blk)   (Replaces: 12591501B)				$ 327.25
14	67001325		Door, Dairy		Appelez-nous	-
15	67002304		Tray, Dairy		Appelez-nous	-
16	12556602		Bucket, Ref Door (gallon)				$ 36.35
17	67002374		Bucket, Ref Door (2l)		Appelez-nous	-
18	12569201		Frame,2l Ref-tilt		Appelez-nous	-
19	12569102		Bucket,2l Ref-tilt		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
