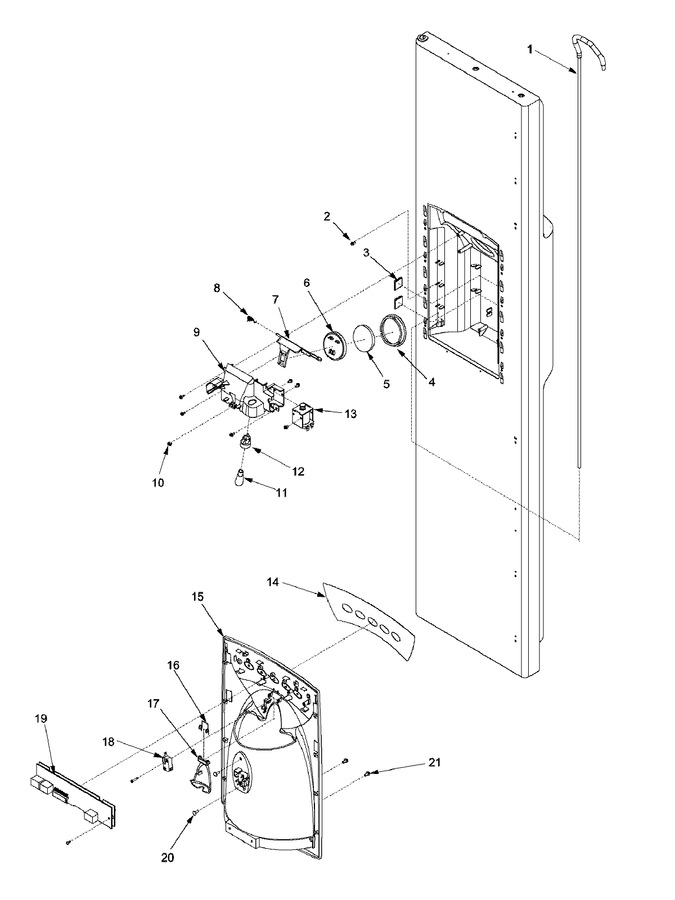

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004938		Assy, Waterline   (Replaces: 12615503)				$ 132.60
2	W10833902		Clamp, Tube   (Replaces: M0108105)				$ 10.99
3	M0104102		Clip, Cord				$ 8.10
4	12665101		Seal, Ice Chute				$ 5.84
5	12563401		Insul, Chute Doorxx		Appelez-nous	-
6	12562701		Door, Ice Chute				$ 5.84
7	12563201		Hinge, Ice Chute		Appelez-nous	-
8	WP12565502		Spring, Chute Dr   (Replaces: 12565502)				$ 7.81
9	67006425		Screw, Sm   (Replaces: M0238642)			Immediately	$ 6.95
9	67001265		Extension, Ice Chute		Appelez-nous	-
10	67002816		Clip, Waterline   (Replaces: 12678201)				$ 18.24
11	M0360003		Bulb, Light		Appelez-nous	-
12	12617501		Socket, Light		Appelez-nous	-
13	WP488234		Screw, Mach   (Replaces: M0200314)				$ 6.74
13	67002170		Solenoid		Appelez-nous	-
14	67002261		Insert, Facade (blk)		Appelez-nous	-
15	67002262		Facade, 5 Button (blk)		Appelez-nous	-
16	B8385403		Spring, Sports Fill-return		Appelez-nous	-
17	12665402B		Button, Sports Fill (blk)		Appelez-nous	-
18	WP12575501		Switch, Limit   (Replaces: 12575501)				$ 68.90
18	M0237945		Screw,hi/lo		Appelez-nous	-
19	67002263		Board, Better		Appelez-nous	-
20	WP67001130		Plug   (Replaces: M0310705)			Immediately	$ 5.98
21	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 6.95
