SELECT A DIAGRAM

01 - Cabinet Back


02 - Controls


03 - Crisper Assy


04 - Deli And Ref Shelf


05 - Evap Fan Assy And Lights


06 - Evaporator Assy And Rollers


07 - Fz Door And Facade


08 - Fz Shelf


09 - Handles And Trim(blk)


10 - Hinges


11 - Ice Bucket Assy


12 - Light Covers And Toe Grille


13 - Lights And Ice Maker


14 - Machine Compartment


15 - Ref/fz Door And Shelf


16 - Supplemental Information


17 - Wiring Information

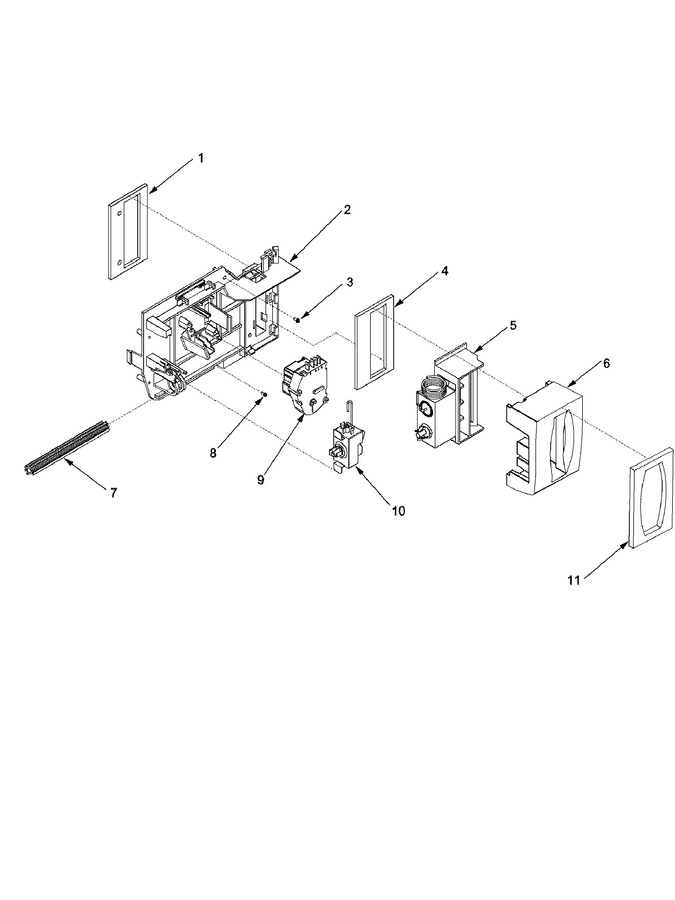

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10383201		Gasket, Damper		Appelez-nous	-
2	12558005		Bracket, Control		Appelez-nous	-
3	M0216539		Screw		Appelez-nous	-
4	12582801		Gasket, Damper				$ 7.62
5	12571701		Control, Damper				$ 107.01
6	12604201		Insulation, Damper		Appelez-nous	-
7	12571801		Extension, Knob		Appelez-nous	-
8	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.00
9	67002167		Timer, Defrost		Appelez-nous	-
10	67002164		Control, Fz Temp		Appelez-nous	-
11	12582901		Gasket, Control Cover				$ 5.51

    View Diagram in Separate Window       Print Part List
