SELECT A DIAGRAM

Diagram for 01 - Cooktop Parts
01 - Cooktop Parts

Diagram for 02 - Control Panel Parts
02 - Control Panel Parts

Diagram for 03 - Manifold Parts
03 - Manifold Parts

Diagram for 04 - Chassis Parts
04 - Chassis Parts

Diagram for 05 - Upper Door Parts
05 - Upper Door Parts

Diagram for 06 - Lower Door Parts
06 - Lower Door Parts

Diagram for 07 - Internal Oven Parts
07 - Internal Oven Parts

Diagram for 08 - Optional Parts (not Included)
08 - Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 9762761 Brochure, Tips (safe Cooking) Appelez-nous -
1 W10291451 Owners Manual Appelez-nous -
1 W10311749 Tech Sheet Appelez-nous -
1 W10291447 Instructions, Installation Appelez-nous -
2 WPW10299233 Kit, Burner Cap (black)   (Replaces: W10299233) Special Order $ 210.99

2 W10299237 Kit, Burner Cap (gray) Appelez-nous -
3 W10336330 Cooktop (black)   (Replaces: W10260169) Special Order $ 420.07

3 W10336331 Cooktop (white)   (Replaces: W10260170) Special Order $ 418.08

4 WPW10406243 Burners (left & Right Rear)   (Replaces: 8286181) In-Stock Immediately $ 39.08

4 WPW10406797 Burners (right Front (12k))   (Replaces: 8286182) Special Order $ 92.91

4 WPW10406878 Burners (left Front)   (Replaces: 8286183) Special Order $ 107.48

4 WPW10336094 Burners (center)   (Replaces: W10336094) Special Order $ 227.81

5 WPW10415451 Knob, Control (2) (stainless)   (Replaces: W10415451) Special Order $ 21.38

5 W10177198 Knob, Control (2) (white)   (Replaces: 7733P533-60) Special Order $ 84.89

5 W10177201 Knob, Control (2) (black)   (Replaces: 7733P532-60) Special Order $ 21.03

6 W10272357 Bracket, Cooktop Support Appelez-nous -
7 WP7733P526-60 Knob, Control (3) (black)   (Replaces: 7733P526-60) In-Stock Immediately $ 25.16

7 WPW10415450 Knob, Control (3) (stainless)   (Replaces: W10415450) In-Stock Immediately $ 21.53

7 W10177197 Knob, Control (3) (white)   (Replaces: 7733P527-60) Special Order $ 20.29

8 W10338215 Kit, Grate (gray) Appelez-nous -
8 WPW10338214 Kit, Grate (black)   (Replaces: W10338214) Special Order $ 345.92

9 W10219251 Panel, Manifold (white) Appelez-nous -
9 W10219250 Panel, Manifold (black) Appelez-nous -
9 W10219252 Panel, Manifold (stainless) Appelez-nous -
10 WPW10333445 Base, Burner Cap (fish Burner)   (Replaces: W10333445) Special Order $ 110.05

11 W10171137 Kit, Burner Cap (fish Burner Only) (gray) Special Order $ 116.61

11 WPW10171140 Kit, Burner Cap (fish Burner Only) (black)   (Replaces: W10171140) Special Order $ 168.47


    View Diagram in Separate Window     Print Icon   Print Part List

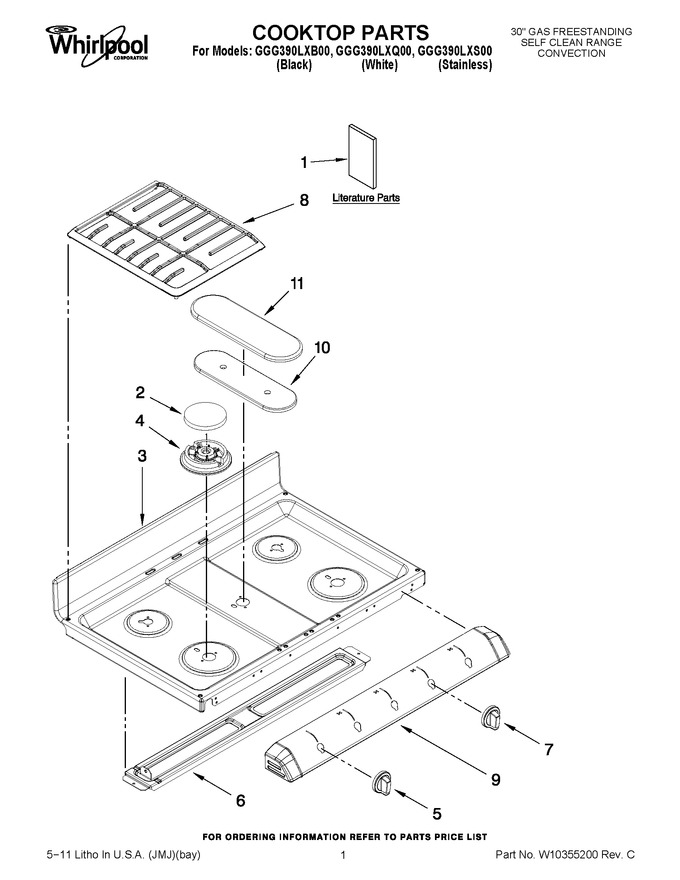

Diagram for GGG390LXS00
