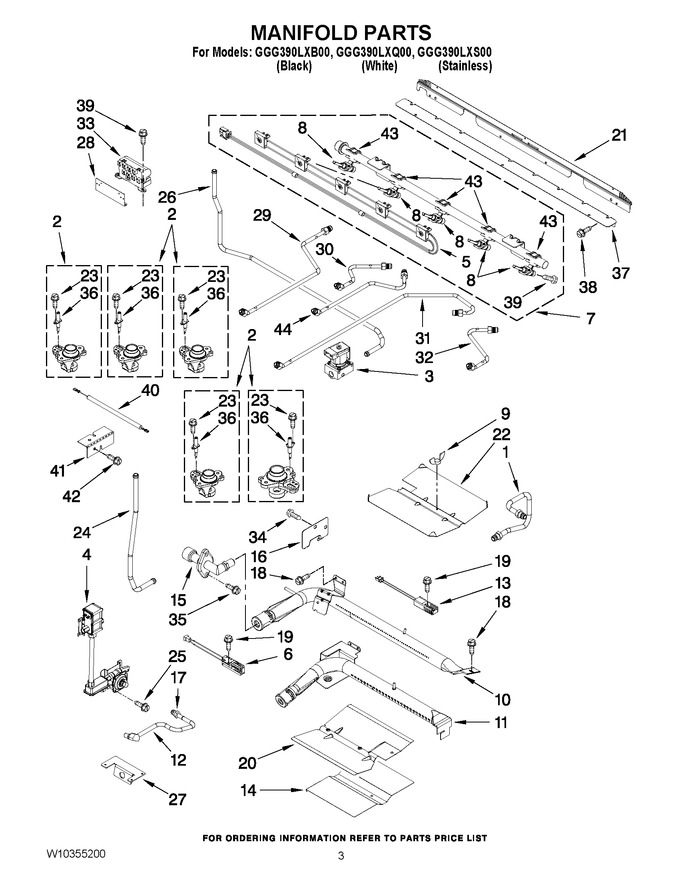

03 - Manifold Parts


04 - Chassis Parts


05 - Upper Door Parts


06 - Lower Door Parts


07 - Internal Oven Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10319002		Tubing, Broil				$ 190.79
2	WPW10319347		Holder, Orifice (center, 7.3k)   (Replaces: W10319347)				$ 114.74
2	WPW10407680		Holder, Orifice (lr & Rr, 5k)   (Replaces: 7527P084-60)				$ 115.09
2	WPW10407678		Holder, Orifice (left Front, 16k)   (Replaces: 7527P081-60)				$ 126.04
2	W10319349		Holder, Orifice (right Front, 10k)		Appelez-nous	-
3	9758382		Valve, Shut Off				$ 76.60
4	WPW10518493		Valve/regulator   (Replaces: W10293834)				$ 348.64
5	WPW10204718		Harness, Switch   (Replaces: W10204718)				$ 220.97
6	WPW10324738		Ignitor, Gas   (Replaces: W10324738)			Immediately	$ 329.05
7	WPW10204705		Assembly, Pipe Manifold   (Replaces: W10204705)			Immediately	$ 331.88
8	WPW10298678		Valves (fish Burner)   (Replaces: W10298678)			Immediately	$ 200.90
8	WPW10206287		Valves (lr/rr, 5k)   (Replaces: W10206287)			Immediately	$ 198.14
8	WPW10206288		Valves (lf/rf, 16k)   (Replaces: W10206288)			Immediately	$ 111.88
9	7103P030-60		Nut				$ 7.43
10	W11245221		Burner, Broiler   (Replaces: W10315768)				$ 222.29
11	W11174122		Burner, Bake   (Replaces: W10272526)				$ 213.50
12	W10342661		Orifice, Bake (lower)   (Replaces: W10273105)				$ 199.64
12	W10342662		Orifice, Bake (upper)   (Replaces: W10273106)				$ 210.08
13	W11596211		Ignitor, Bake   (Replaces: 7432P143-60)			Immediately	$ 93.36
14	W10298865		Shield, Bake		Appelez-nous	-
15	W10292293		Fitting, Broiler				$ 104.17
16	4005F421-45		Cover, Igniter		Appelez-nous	-
17	74007451		Nut, Mounting   (Replaces: 7103P195-60)				$ 9.39
18	7101P461-60		Screw		Appelez-nous	-
19	WP4159193		Screw   (Replaces: 7101P282-60)				$ 5.07
20	W10272528		Baffle, Bake				$ 294.68
21	WPW10276470		Bracket, Manifold Rr Cover   (Replaces: W10343062)				$ 89.33
22	3601F358-45		Baffle, Broil Burner				$ 254.66
23	WP8273062		Screw, Igniter   (Replaces: 8273062)			Immediately	$ 7.91
24	W10295050		Tubing (supply Regulator To Shutoff)				$ 192.26
25	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
26	W10295055		Tubing (supply Shutoff To Manifold)				$ 207.20
27	W11756017		Bracket, Orifice   (Replaces: W10272520)		Appelez-nous	-
28	W10319059		Bracket, Support (for Spark Module)		Appelez-nous	-
29	W10323464		Tubing, Lr				$ 135.77
30	W10323463		Tubing, Lf				$ 132.93
31	W10323467		Tubing, Rr		Appelez-nous	-
32	W10323466		Tubing, Rf		Appelez-nous	-
33	74009098		Module, Spark   (Replaces: 7431P053-60)				$ 355.95
34	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 7.30
35	WP3387230		Screw, 10ab X .75   (Replaces: 7101P502-60)			Immediately	$ 8.54
36	WPW10110378		Ignitor (all (except Fish))   (Replaces: W10110378)			Immediately	$ 54.71
36	W10324015		Ignitor (fish Electrode)				$ 77.13
37	WPW10276466		Bracket, Manifold (bottom)   (Replaces: W10276466)				$ 108.19
38	WPY706189		Screw   (Replaces: 7101P653-60)			Immediately	$ 7.55
39	W11233072		Screw   (Replaces: 7101P388-60)			Immediately	$ 14.72
40	W10636384		Ext., Electrode   (Replaces: W10322044)				$ 140.05
41	W10324366		Holder, Electrode Ext.		Appelez-nous	-
42	W10217535		Screw (extension Holder)				$ 21.92
43	98017516		Connection, Saddle				$ 93.53
44	W10323465		Tubing, Center				$ 143.88
NI	WPW10311058		Kit, Lp Conversion   (Replaces: W10311058)				$ 165.20
NI	W10324646		Insulation, Orifice				$ 91.18
