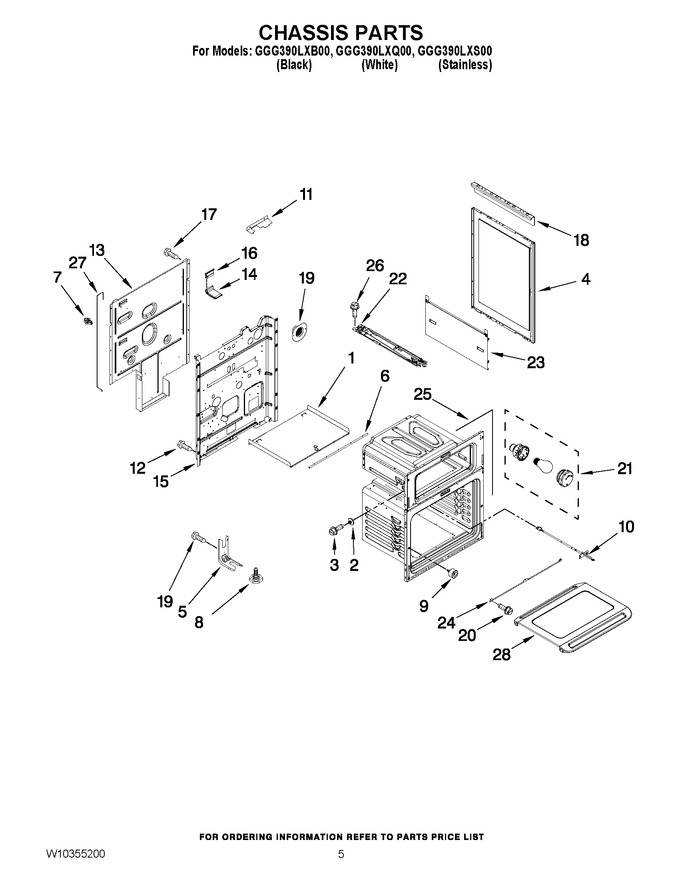

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10319038		Shield, Gemini   (Replaces: W10318912)				$ 150.59
2	WPW10237689		Spacer, Side Panel   (Replaces: W10237689)				$ 83.82
3	WPW10267456		Screw, Shoulder   (Replaces: W10267456)				$ 8.06
4	WPW10330376		Panel, Side (white)   (Replaces: W10330376)				$ 217.83
4	W10330375		Panel, Side (black)				$ 82.13
5	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F656-51)			Immediately	$ 6.11
6	W10319000		Gasket, Gemini Oven Shield		Appelez-nous	-
7	W10284945		Guide, Rod		Appelez-nous	-
8	W11665456		Foot, Leveler (4)   (Replaces: 7101P507-60)			Immediately	$ 29.52
9	W10105790		Screw, Bumper				$ 7.41
10	WP7430P044-60		Probe, Sensor   (Replaces: 7430P044-60)			Immediately	$ 175.94
11	W10268558		Cover, Lower Wire		Appelez-nous	-
12	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
13	WPW10261387		Cover, Main Wire   (Replaces: W10261387)				$ 208.95
14	W10272519		Assembly, Flue (lower)		Appelez-nous	-
14	W11243157		Assembly, Flue (upper)   (Replaces: W10311326)				$ 370.35
15	WPW10260580		Back, Main   (Replaces: W10260580)				$ 155.95
16	W10321445		Assy., Flue Outlet (lower)		Appelez-nous	-
16	W10321446		Assy., Flue Outlet (upper)		Appelez-nous	-
17	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
18	W10319087		Bracket, End Post Support				$ 83.10
19	WP7101P485-60		Screw   (Replaces: 7101P485-60)				$ 30.72
20	WP98008545		Screw   (Replaces: 7101P633-60)				$ 18.60
21	W10323374		Assembly, Light				$ 44.40
22	W10883049		Lock, Door   (Replaces: W10341088)			Immediately	$ 306.46
23	WPW10253471		Shield, Side Insul   (Replaces: W10253471)				$ 159.64
24	W10299886		Trim, Kickplate				$ 88.08
25	WPW10269069		Gasket, Oven Door (lower)   (Replaces: W10269069)			Immediately	$ 190.80
25	W10318928		Gasket, Oven Door (upper)				$ 177.37
26	74003975		Screw (door Lock)   (Replaces: 7101P375-60)				$ 14.03
27	W10284949		Rod, Shutoff		Appelez-nous	-
28	WPW10272546		Bottom, Oven   (Replaces: W10272546)			Immediately	$ 222.79
NI	W11688777		Insulation, Upper (back)   (Replaces: W10318918)				$ 75.73
NI	W11688385		Insulation, Lower (wrapper)   (Replaces: W10318911)				$ 127.50
NI	W11685611		Insulation, Lower (back)   (Replaces: W10204081)				$ 123.70
NI	W11684769		Insulation, Upper (wrapper)   (Replaces: W10318910)				$ 126.07
NI	W10324645		Insulation, Floor		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
