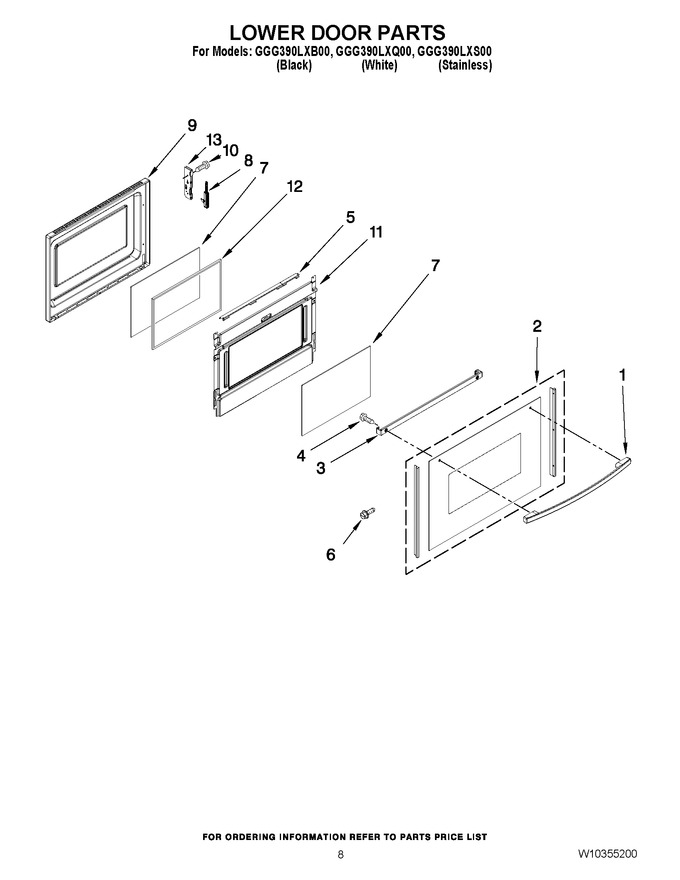

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10323589		Handle, Door (black)   (Replaces: W10323589)			Immediately	$ 238.78
1	W10817434		Handle, Door (white)   (Replaces: W10323588)			Immediately	$ 234.82
1	WPW10144883		Handle, Door (stainless)   (Replaces: W10144883)				$ 252.66
2	W10326904		Assembly, Glass Door (stainless (stainless Incl. Trim & Overlay))		Appelez-nous	-
2	W10326566		Assembly, Glass Door (white)		Appelez-nous	-
2	W10326569		Assembly, Glass Door (black)		Appelez-nous	-
3	WPW10294695		Bracket, Handle   (Replaces: W10294695)				$ 147.02
4	WPW10317886		Screw, Handle   (Replaces: W10317886)			Immediately	$ 8.20
5	WPW10272594		Frame, Glass (2)   (Replaces: W10272594)			Immediately	$ 197.39
6	WPW10292297		Screw W/washer   (Replaces: W10292297)			Immediately	$ 7.55
7	WP9757706		Glass, Inner (2)   (Replaces: 9757706)			Immediately	$ 141.95
8	WPW10335434		Hinge, Door (left)   (Replaces: W10274496)			Immediately	$ 102.90
8	WPW10335433		Hinge, Door (right)   (Replaces: W10274495)				$ 104.99
9	WPW10272698		Lining, Door   (Replaces: W10272698)				$ 345.72
10	WP4449743		Screw (receiver)   (Replaces: 4449743)				$ 7.55
11	W10340464		Retainer, Insul.   (Replaces: W10287976)				$ 289.80
12	WPW10321285		Insulation, Door   (Replaces: W10321285)				$ 106.43
13	WPW10272328		Receiver (right)   (Replaces: W10272328)				$ 90.04
13	WPW10272329		Receiver (left)   (Replaces: W10272329)				$ 81.11
