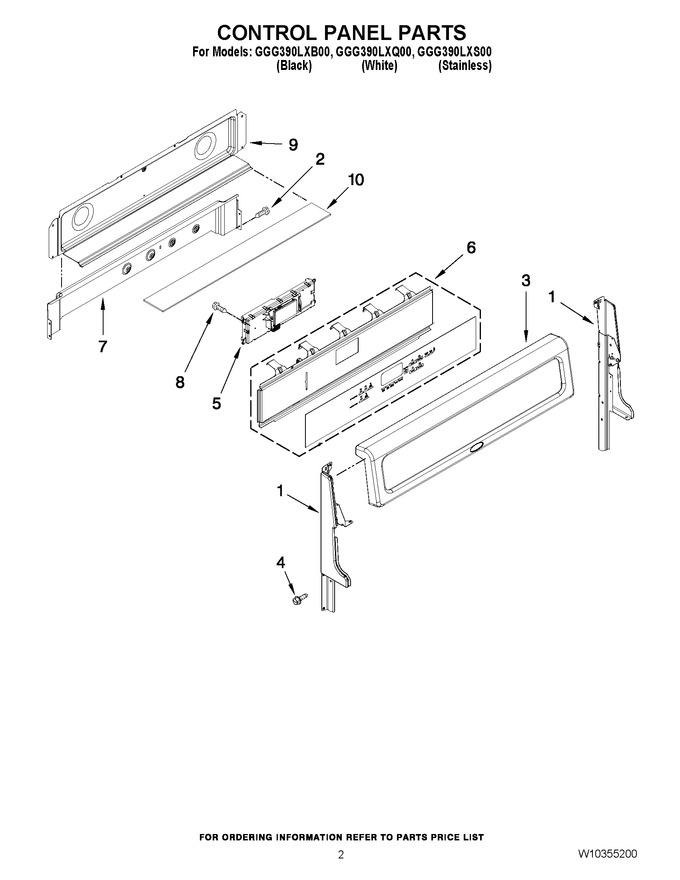

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10319112 | Support, Backguard (white, Right) |
|
$ 93.79 | |||||
| 1 | W10319110 | Support, Backguard (white, Left) |
|
$ 95.95 | |||||
| 1 | W10319111 | Support, Backguard (black, Right) |
|
$ 43.80 | |||||
| 1 | W10319109 | Support, Backguard (black, Left) |
|
$ 92.84 | |||||
| 2 | W11233072 | Screw (Replaces: 7101P338-60) |
|
Immediately | $ 14.72 | ||||
| 3 | W10201509 | Console (black) |
|
$ 114.95 | |||||
| 3 | W10201507 | Console (white) |
|
$ 115.53 | |||||
| 3 | W10201510 | Console (stainless) |
|
$ 116.83 | |||||
| 4 | WP98008545 | Screw (Replaces: 7101P633-60) |
|
$ 18.60 | |||||
| 5 | WPW10365415 | Electric, Control (Replaces: W10267878) |
|
$ 389.20 | |||||
| 6 | W10321795 | Assy., Membrane (incl. Bracket) (black) |
|
- | |||||
| 6 | W10321797 | Assy., Membrane (incl. Bracket) (white) |
|
- | |||||
| 7 | W10278697 | Shield, Vent |
|
Immediately | $ 183.33 | ||||
| 8 | WP74003976 | Screw (Replaces: 7101P500-60) |
|
$ 7.55 | |||||
| 9 | W10296773 | Cover, Backguard Wire |
|
$ 194.52 | |||||
| 10 | W11684874 | Insualtion, Wire Cover (Replaces: W10309232) |
|
$ 35.56 |
