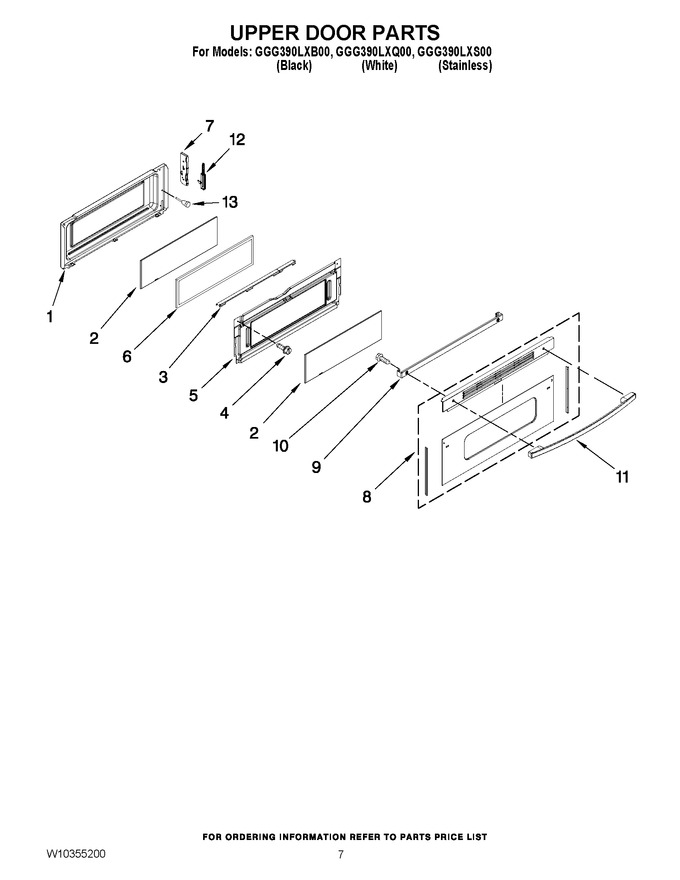

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10206315		Lining, Door		Appelez-nous	-
2	W11132120		Glass, Inner (2)   (Replaces: W10272707)				$ 179.33
3	WPW10272708		Frame, Glass   (Replaces: W10272708)				$ 171.93
4	WPW10292297		Screw W/washer   (Replaces: W10292297)			Immediately	$ 7.55
5	W10333856		Retainer, Insul.		Appelez-nous	-
6	WPW10321271		Insulation, Door   (Replaces: W10321271)				$ 99.18
7	W10647259		Receiver   (Replaces: W10277006)			Immediately	$ 9.32
8	W10322711		Assembly, Glass Door (white)		Appelez-nous	-
8	W10322715		Assembly, Glass Door (black)		Appelez-nous	-
8	W10323327		Assembly, Glass Door (stainless (stainless Incl. Lh & Rh Trim))		Appelez-nous	-
9	WPW10294695		Bracket, Handle   (Replaces: W10294695)				$ 147.02
10	WPW10317886		Screw, Handle   (Replaces: W10317886)			Immediately	$ 8.20
11	W10817434		Handle, Door (white)   (Replaces: W10323588)			Immediately	$ 234.82
11	WPW10323589		Handle, Door (black)   (Replaces: W10323589)			Immediately	$ 238.78
11	WPW10144883		Handle, Door (stainless)   (Replaces: W10144883)				$ 252.66
12	W10274500		Hinge, Door (left)				$ 66.34
12	W10274499		Hinge, Door (right)				$ 66.03
13	4448520		Bumper, Door				$ 22.25
