Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 49-60559 No Item Description Appelez-nous -
1 31-46119 Installation Instruction Appelez-nous -
1 31-51746 Mini Manual Appelez-nous -
2 WR01X10304 Hardware Pack Appelez-nous -
100 WR78X12196 Door Complete Fz Service Appelez-nous -
101 WR38X10275 Collar Kit- Black Appelez-nous -
102 WR13X10238 Top Sxs Fz Door Hinge As Appelez-nous -
105 WR13X10250 Fz Btm Dr Hinge Kit Appelez-nous -
106 WR01X10297 Fz Bottom Hinge Bushing Appelez-nous -
107 WR24X10204 Gasket Door Appelez-nous -
108 WR71X10426 Reg Bin Asm Appelez-nous -
109 WR01X10303 Handle Trim Screw Appelez-nous -
110 WG03F00341 Housing Shield Disp   (Replaces: WR17X12152) Special Order $ 18.59

111 WG03F00291 Funnel Ice Display   (Replaces: WR17X11267) Special Order $ 63.62

113 WR01F03637 Switch   (Replaces: WR23X10224) In-Stock Immediately $ 17.47

114 WR02X10584 Spring Funnel Appelez-nous -
115 WR02X10670 Reflector Light Appelez-nous -
116 WR2X9561 Lamp Socket Appelez-nous -
117 WG03A03944 Light Dispenser   (Replaces: WR02X12208) In-Stock Immediately $ 67.41

118 WR01L00935 Crank Door Recess   (Replaces: WR17X10706) Special Order $ 12.71

119 WR01L01914 Door Recess Assy   (Replaces: WR17X3093) Special Order $ 65.21

122 WR38X10326 Door Trim Fz Top Appelez-nous -
123 WR38X10333 Door Trim Fz Btm Appelez-nous -
124 WR38X10270 Door Trim Fz Side Appelez-nous -
125 WR01L06145 Handle   (Replaces: WR12X10526) Special Order $ 179.10

126 WR38X10271 Handle Trim Appelez-nous -
127 WR01F01784 Solenoid Asm   (Replaces: WR62X10055) Special Order $ 88.99

128 WR1X1845 Screw 12-24tt Oht .900 Appelez-nous -
129 WR01L03203 Grille Recess Bk   (Replaces: WR17X11655) Special Order $ 31.76

130 WG03A00448 Trim Screw   (Replaces: WR1X2130) Special Order $ 4.20

133 WR55X10157 Disp Asm- Board / Glass Appelez-nous -
134 WR01X10019 Screw 6-10 Pl Flp 1/2 S Appelez-nous -
319 WR01X10188 Screw Trim (self Drillin Appelez-nous -
908 WR02X11839 Ps Custom Handle Cvr Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

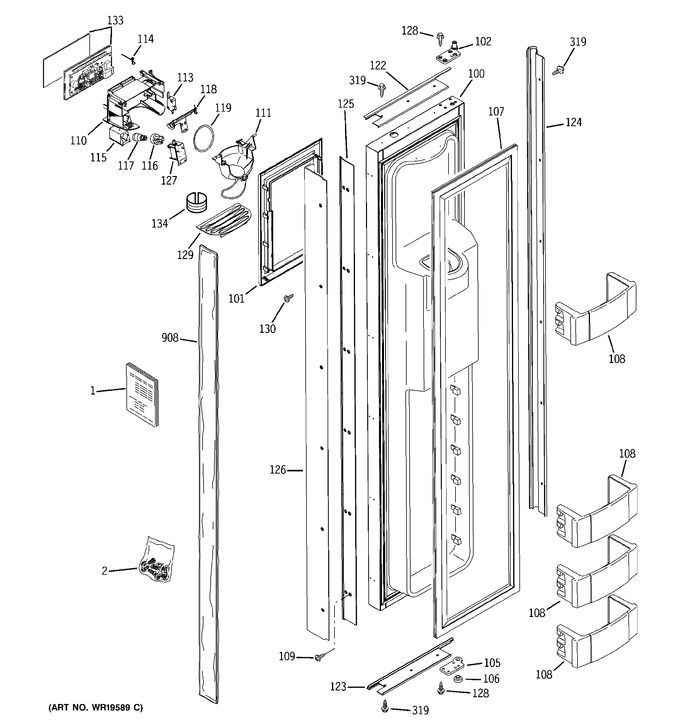

Diagram for ZISB360DXA
