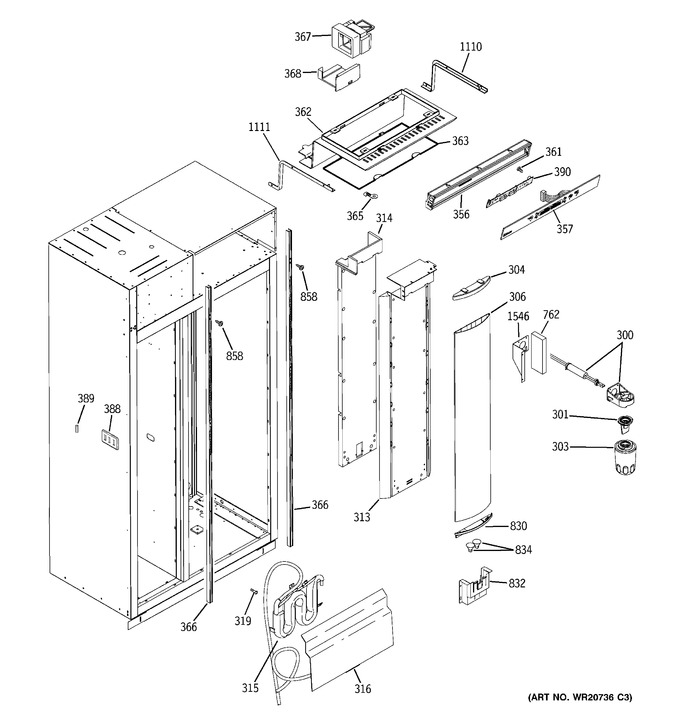

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 300 | WR02X13046 | Water Filter & Head Asm |
|
- | |||||
| 300 | WR02X11448 | Filter Mnt & Tube Asm |
|
- | |||||
| 301 | WG03L10111 | Cap Filter Bypass (Replaces: WR02X11705) |
|
Immediately | $ 19.97 | ||||
| 303 | PMMWF | Water Filt Ref Cyst (Replaces: MWF) |
|
Immediately | $ 81.88 | ||||
| 304 | WR12X10922 | Bulb Housing Asm 36ff |
|
- | |||||
| 306 | WR17X12620 | Light Column Asm 36/42fz |
|
- | |||||
| 313 | WR17X12532 | Airtower Ff 36 |
|
- | |||||
| 314 | WR02X13317 | Foam Airtower Asm |
|
- | |||||
| 315 | WG03F03757 | Water Tank Asm (Replaces: WR17X12702) |
|
$ 60.18 | |||||
| 316 | WR02X13165 | Cover Water Tank |
|
- | |||||
| 319 | WR01X10188 | Screw Trim (self Drillin |
|
- | |||||
| 356 | WR74X10250 | Housing Control |
|
- | |||||
| 357 | WR55X10827 | Membrane Sxs Disp |
|
- | |||||
| 361 | WR02X11200 | 4-40 X 1/4 Ph Sms |
|
- | |||||
| 362 | WR17X12820 | Bracket Ceiling |
|
- | |||||
| 363 | WR02X12834 | Ceiling Light Shield |
|
- | |||||
| 365 | WR02X11203 | Latch Light Shield |
|
- | |||||
| 366 | WR17X12524 | Track Ff Shelf |
|
- | |||||
| 367 | WR02X12832 | Damper Foam Asm 36 |
|
- | |||||
| 368 | WR02X13318 | Wedge Foam Damper |
|
- | |||||
| 388 | WR02X12839 | Grille Sensor |
|
- | |||||
| 389 | WR55X10030 | Sensor Temperature |
|
- | |||||
| 390 | WR55X10820 | Board Led Light Asm |
|
- | |||||
| 762 | WR14X10296 | Foam Strip Front |
|
- | |||||
| 830 | WR17X12545 | Bulb Housing Asm 48fz |
|
- | |||||
| 832 | WR17X12546 | Bulb Housing Asm 36/42fz |
|
- | |||||
| 834 | WR02X11183 | Halogen Bulb Light Colum |
|
- | |||||
| 858 | WR01X10840 | Scr 10-24 F Pnp 1.25s |
|
- | |||||
| 1110 | WR01X10927 | Trim Ceiling Bracket Rh |
|
- | |||||
| 1111 | WR01X10928 | Trim Ceiling Bracket Lh |
|
- | |||||
| 1546 | WR02X12828 | Water Filter Bracket |
|
- |
