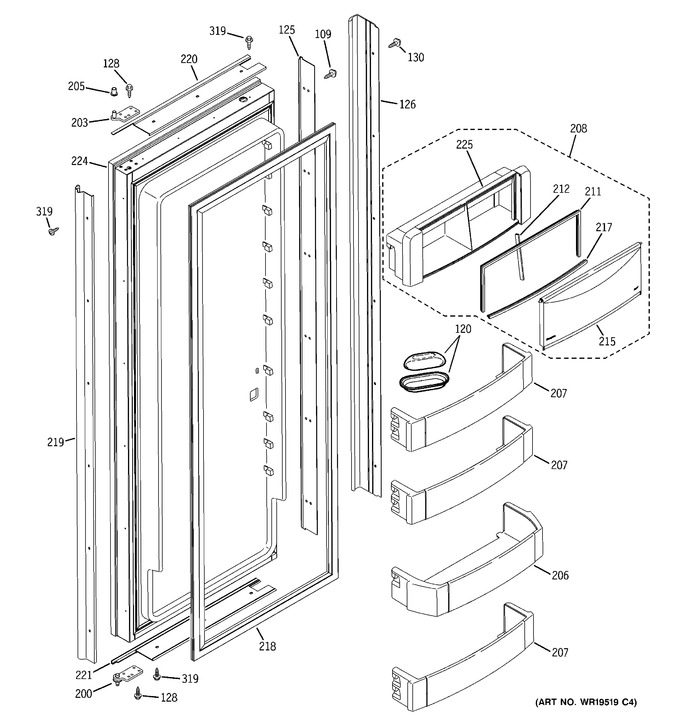

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
109	WR01X10303		Handle Trim Screw		Appelez-nous	-
120	WR19X35		Dish Butter Asm		Appelez-nous	-
125	WR01L06145		Handle   (Replaces: WR12X10526)				$ 179.10
126	WR38X10271		Handle Trim		Appelez-nous	-
128	WR1X1845		Screw 12-24tt Oht .900		Appelez-nous	-
130	WG03A00448		Trim Screw   (Replaces: WR1X2130)				$ 4.20
200	WR13X10657		Hinge Door Btm		Appelez-nous	-
203	WR13X10580		Hinge Asm Door Top		Appelez-nous	-
205	WG03A00012		Bushing Hinge Top   (Replaces: WR02X10954)				$ 49.33
206	WR71X10851		Bin Asm Gallon		Appelez-nous	-
207	WR71X10408		Reg Bin Asm		Appelez-nous	-
208	WR17X11220		Dairy Bin Asm		Appelez-nous	-
211	WR14X10141		Dairy Sq Gasket		Appelez-nous	-
212	WR14X10132		Dairy Bin Center Gasket		Appelez-nous	-
215	WR22X10036		Dairy Bin Door W/trim		Appelez-nous	-
217	WR24X10113		Gasket Dairy Btm		Appelez-nous	-
218	WR24X10203		Gasket Door		Appelez-nous	-
219	WR38X10272		Door Trim Ff Side		Appelez-nous	-
220	WR38X10334		Door Trim Ff Top		Appelez-nous	-
221	WR38X10335		Door Trim Ff Bottom		Appelez-nous	-
224	WR78X12191		Door Complete Ff Service		Appelez-nous	-
225	WR14X10142		Top Edge Guard Dairy Bin		Appelez-nous	-
319	WR01X10188		Screw Trim (self Drillin		Appelez-nous	-
