Diagram # Part Number Description Series Availability Ships Price Add to Cart
652 WG03F01616 Ring Compression   (Replaces: WR02X12149) Special Order $ 3.97

700 WR23X10622 Power Supply Pcb Appelez-nous -
702 WG03L05118 Cover Board Main Sxs   (Replaces: WR02X12829) Special Order $ 81.88

703 WR01F02880 Board Asm Main Control   (Replaces: WR55X10819) In-Stock Immediately $ 329.91

704 WR01X10301 Main Board Stand Offs Appelez-nous -
705 WG03F03655 Cap Suction Tube Asm   (Replaces: WR86X10021) Special Order $ 208.86

706 WG03A03157 P/s Dryer Kit R134a   (Replaces: WR86X96) In-Stock Immediately $ 153.40

707 WR1X1779 Stud Mtg Compr Appelez-nous -
708 WR17X12348 System Pan Appelez-nous -
709 WR02X12569 System Pan Bracket Appelez-nous -
711 WR17X12484 Pan Vaporizer Appelez-nous -
713 WR60X10216 Motor Dc Cond Fan Appelez-nous -
718 WR01X10305 Steel Collar Appelez-nous -
719 WR02X11794 Grommet Compressor Appelez-nous -
723 WR02X10593 Bracket Cond Fan (rear) Appelez-nous -
725 WG03F00154 Aasm Kit Vcc2 Wr87x10111   (Replaces: WR87X10111) Special Order $ 1,117.00

726 WG03F00071 Bracket Cond Fan (mtg)   (Replaces: WR02X11863) In-Stock Immediately $ 27.00

729 WR17X11252 Shroud Condenser Appelez-nous -
735 WG03F00911 Power Cord   (Replaces: WR23X10300) Special Order $ 85.41

736 WR23X10571 Master Light Switch Appelez-nous -
740 WR01F02892 Prod Serv Condenser   (Replaces: WR84X10022) Special Order $ 403.54

741 WR1X1466 Scr 8-32 T Hxw 3/8 S Appelez-nous -
750 WR1X1826 #8-18 Type Ab X 3/8 Ph P Appelez-nous -
753 WR02X13042 Front Wheel Asm Appelez-nous -
756 WR17X12529 Baffle Lh Appelez-nous -
795 WG03F00070 Bracket And Valve Asm   (Replaces: WR57X10084) Special Order $ 167.45

903 WR55X10685 Inverter Asm Comp Mount Appelez-nous -
905 WR23X10392 Harness Ground Appelez-nous -
906 WG03L02186 Accumulator   (Replaces: WR86X10038) Special Order $ 76.77

1551 WR1X5645 #10x1 Ph Sms Appelez-nous -
7309 WR01X10459 Flat Washer 3/8x 7/8 Appelez-nous -
8454 WR38X10190 Edge Trim Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

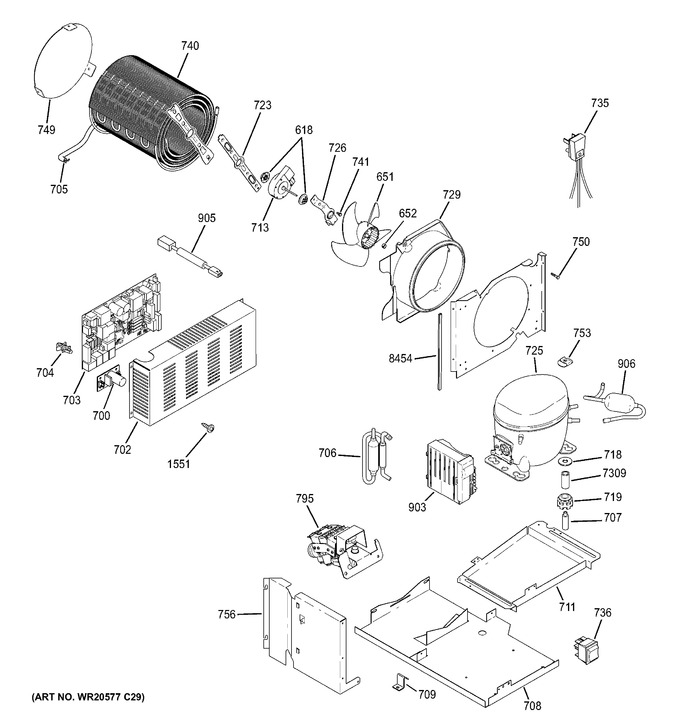

Diagram for ZISB360DXA
